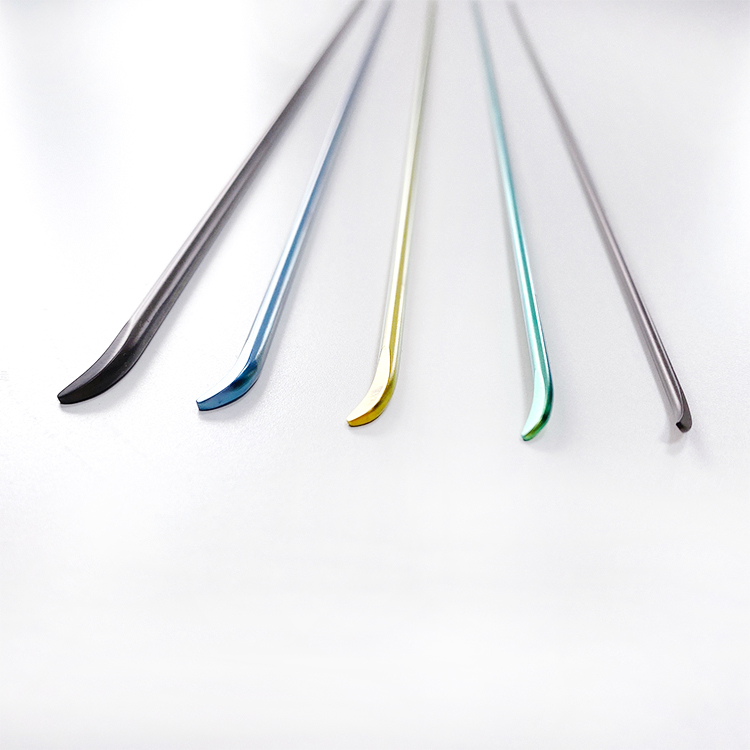

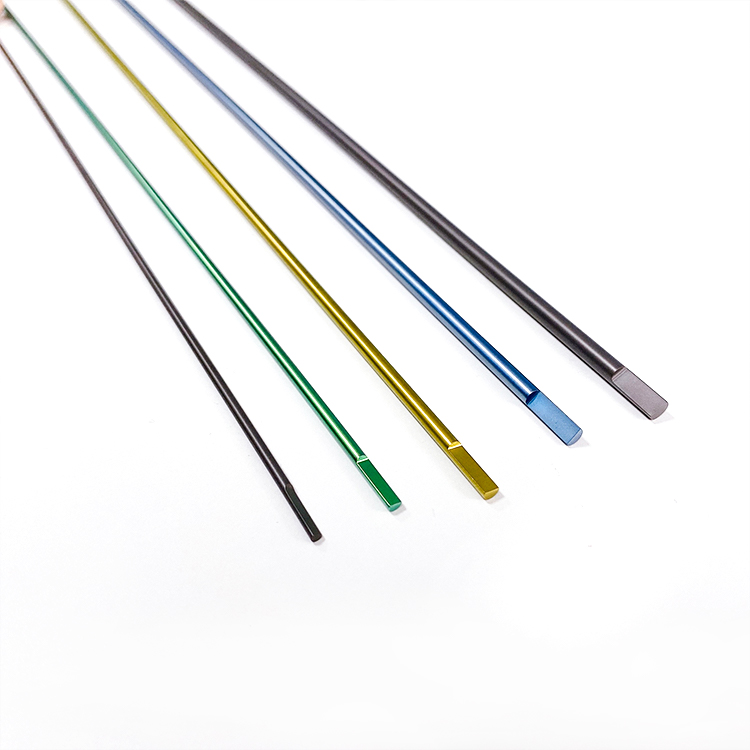

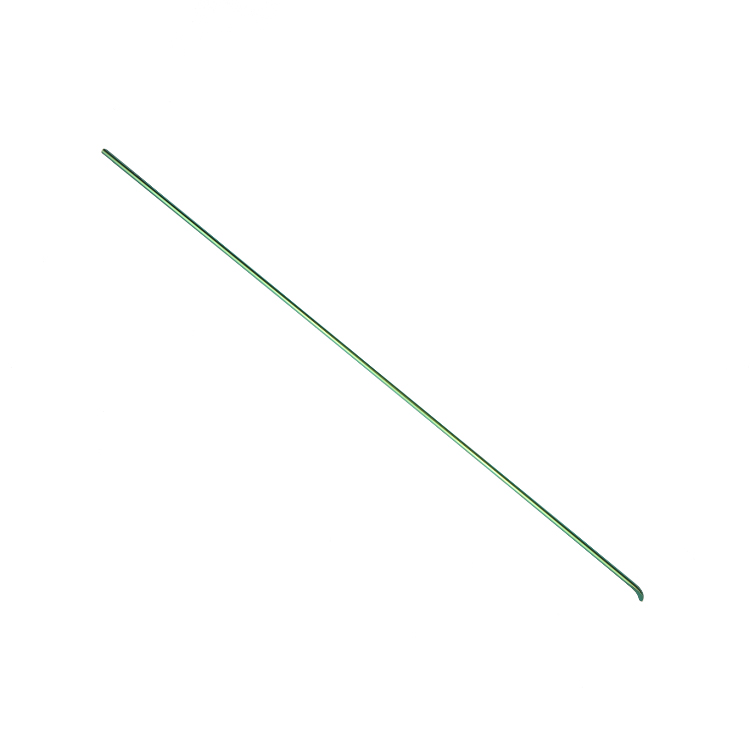

Orthopedic Elastic Intramedullary Nail Implant Elastic Nail Orthopedic for Child Trauma Hospital Use

Product Description

Intramedullary Nail Banner
Products Description

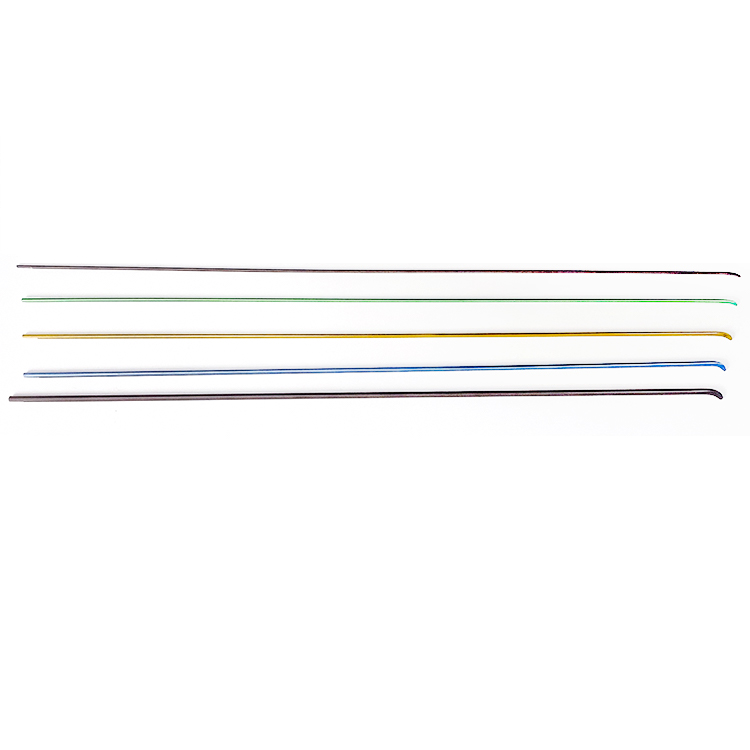

Products Description Image
Product name Model Material Specification Code
Elastic Nail Intramedullary Nail SNXS Titanium Alloy 2.5×440 15902940

Intramedullary nail: All kinds of high quality intramedullary nails. Easy to insert and take out; Titanium alloy material; Reduce the risk of outer wall impact and main nail inward movement; The diameter is suitable for all applications; Simple operation and minimally invasive implantation.

Product name Model Specification Material Code
Proximal Femoral Nail Antirotation Intramedullary Nail SGM-IIK 9.0×170×130° Titanium Alloy 15649170
Proximal Femoral Nail Antirotation Intramedullary Nail SGM-IIK 9.0×200×130° Titanium Alloy 15649200
Proximal Femoral Nail Antirotation Intramedullary Nail SGM-IIK 9.0×240×130° Titanium Alloy 15649240
Proximal Femoral Nail Antirotation End Cap SGM-IIK 10×15 Titanium Alloy 15601115
Proximal Femoral Nail Antirotation End Cap SGM-IIK 10×20 Titanium Alloy 15601120
Proximal Femoral Nail Antirotation Blade SGM-IIK 10.5×70 Titanium Alloy 15600570
Proximal Femoral Nail Antirotation Blade SGM-IIK 10.5×80 Titanium Alloy 15600580
Proximal Femoral Nail Antirotation φ4.9 locking screw SGM-IIK 4.9×30--72 Titanium Alloy 15604930
Femoral Nail locking screw I SGG-IIIK 6.5×75 Titanium Alloy 15246575
Femoral Nail Intramedullary Nail SGG-IIIK 9.0-13.0 Titanium Alloy 15249340
Humeral nail Intramedullary Nail SHG-IK 8 Titanium Alloy 15728160
Our Advantages
Advantage Overview 1
Advantage Overview 2
1 1.0m radian radius:
The length is consistent with the anatomy of the FEMORAL medullary cavity.
Radian Radius Detail
2 Screw-in-screw design:
To further improve the fixation strength of osteoporosis. The Blunt End Design of the locking screw reduces the risk of excessive penetration.
Screw-in-screw Design
3 Specifications & Materials:
Short nail: diameter of 8.0/ 9.5mm, length of 160mm.
Long nail: diameter of 7.0/ 8.5mm, length of 180-315mm (15mm interval).
All nails have left and right type, titanium alloy material. The diameter is suitable for all applications. Simple operation and minimally invasive implantation.
Details Images
Proximal fixation
Proximal fixation:
Multi-plane and Multi-locking screw fixation options, multiple options for operation, to achieve optimal fixation stability. Screw-in-screw design to further improve the fixation strength of osteoporosis. Blunt head of locking screw design to reduce the risk of excessive penetration. Locking screw countersinking design to reduce soft tissue irritation.
Distal fixation:
Short screw: two different plane holes for locking. Long screw: three locking holes avoid important blood vessels, located in the safe area between the median nerve and the radial nerve. Two anterior and posterior locking holes facilitate the manual operation, minimizing the occurrence of rotation and displacement of distal fracture.
Distal fixation

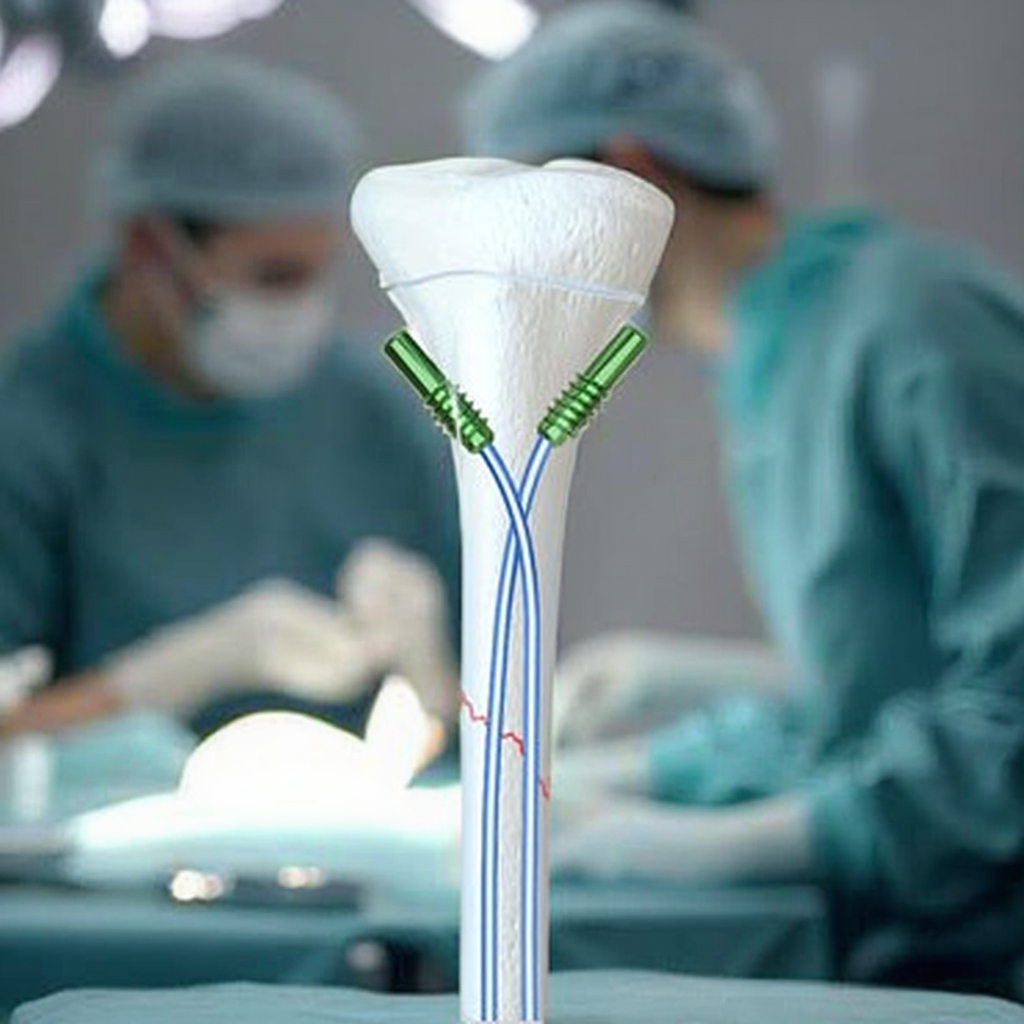

Elastic Nail
Elastic Nail:
Nail diameter should be 30-40% of the narrowest transverse diameter of medullary cavity. Apply to 3mm / 6-8 years old; 3.5mm / 9-11 years old; 4.0mm / 12-14 years old.
Compression:
Special design of compression holes helps to increase the stability of transverse or short oblique fractures. Self-sustaining compression mechanism, no static screw is needed to maintain compression during operation.
Compression Mechanism
TFNA System
TFNA System TFNA:
Compared with G3 with radian radius of 1.5m, the distal location of TFNA with radian radius of 1.0m in the center of medullary cavity is twice as likely as that of G3.
System Overview
Main Products
Company Profile
Manufacturing Facility 1
Manufacturing Facility 2

We are a leading orthopedic medical device R&D, manufacturing, and operation enterprise. We focus on the development, manufacturing, and sales of orthopedic trauma, spine, and bone-joint implants and devices. The sales network covers the whole country and has sales offices in many regions. With first-class production equipment, a professional R&D, technology, and manufacturing team, a quality management system in line with international standards, and an efficient marketing service strategy, we have won the affirmation of many partners. The enterprise has a number of senior R&D technical teams with many years of experience in orthopedic medical devices, making unique achievements in the field. We have always put the talent development strategy in the first place, continuously improving and building a professional innovation team with high quality and strong R&D ability. Adhering to the development concept of technological innovation, product innovation, and service innovation, we gather and integrate advantageous resources to serve the great cause of human health, working hard and moving forward bravely.

Quality Inspection
Warehouse
Why Choose Us
Why Choose Us Banner
FAQ

Would you please give some information on shipping mode and charges?

Normally we send through courier like DHL, FEDEX, UPS, TNT etc. or post upon request from clients.

Do you have ISO9001, ISO 13485, CE approvals?

Yes, our manufacturing processes comply with strict quality standards, and we hold ISO 9001, ISO 13485, and CE certifications to ensure product safety and performance.

What is the minimum order that we can place? Do you provide free samples?

We expect your minimum orders to be at least US$500. However, we understand that customers need to place smaller sample orders in the beginning to test market our products. We could offer free samples, but we do not cover the cost of freight.

Can I buy products not shown but similar to your catalogue?

Of course you can, just send us pictures or samples. But this takes a little longer time for delivery.

Do you have stock for listed products, or they are newly produced? What are your terms of payment?

Generally, we have stock for every listed product, which are produced monthly. However, it depends on our current sales status. It is best to contact us for accurate inventory information. Payment <= 800USD, 100% in advance. Payment > 800USD, 30% T/T in advance, balance before shipment. Payment methods include L/C, T/T, Western Union, and PayPal.

What material is used for these intramedullary nails?

All intramedullary nails in our product line are made of high-quality Titanium Alloy, which is biocompatible, durable, and highly suitable for orthopedic trauma implantation.
