The length is consistent with the anatomy of the FEMORAL medullary cavity, ensuring structural stability and optimal alignment.

Engineered to further improve the fixation strength of osteoporosis. The Blunt End Design of the locking screw reduces the risk of excessive penetration.

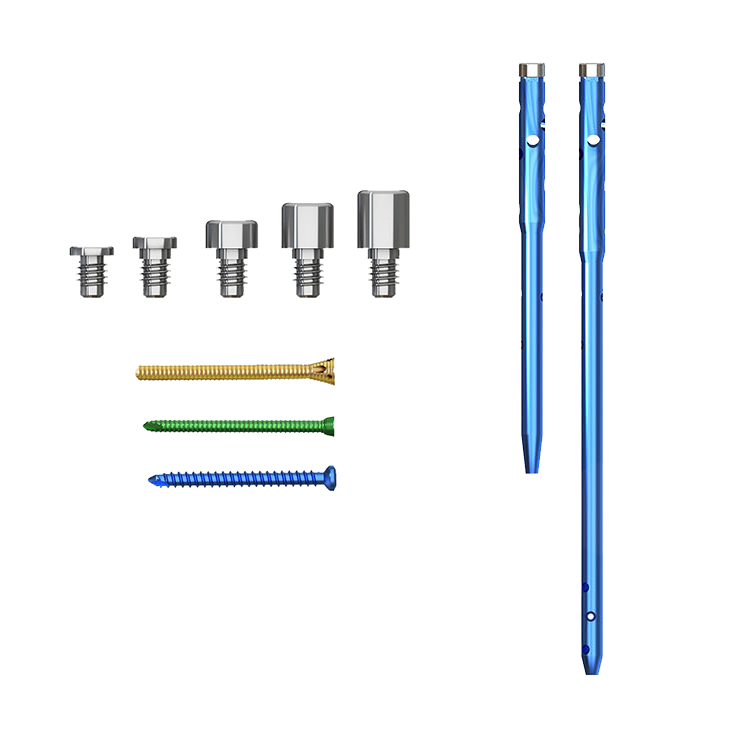

Short nail: diameter of 8.0/9.5mm, length of 160mm.
Long nail: diameter of 7.0/8.5mm, length of 180-315mm (15mm interval).

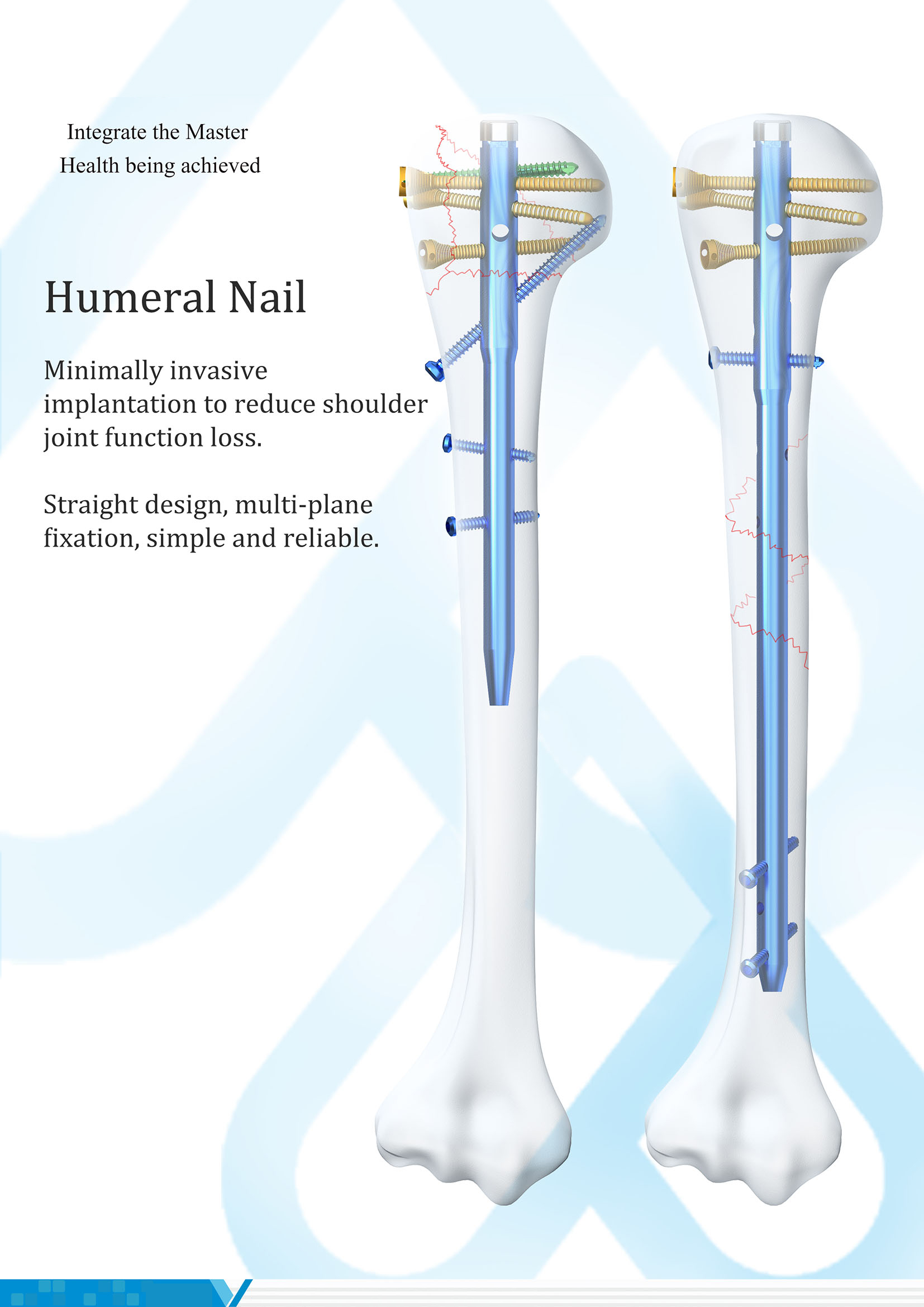

All nails have left and right types, made of titanium alloy material. The diameter is suitable for all applications, featuring simple operation and minimally invasive implantation.

• Multi-plane and Multi-locking screw fixation options, offering multiple options for operation to achieve optimal fixation stability.

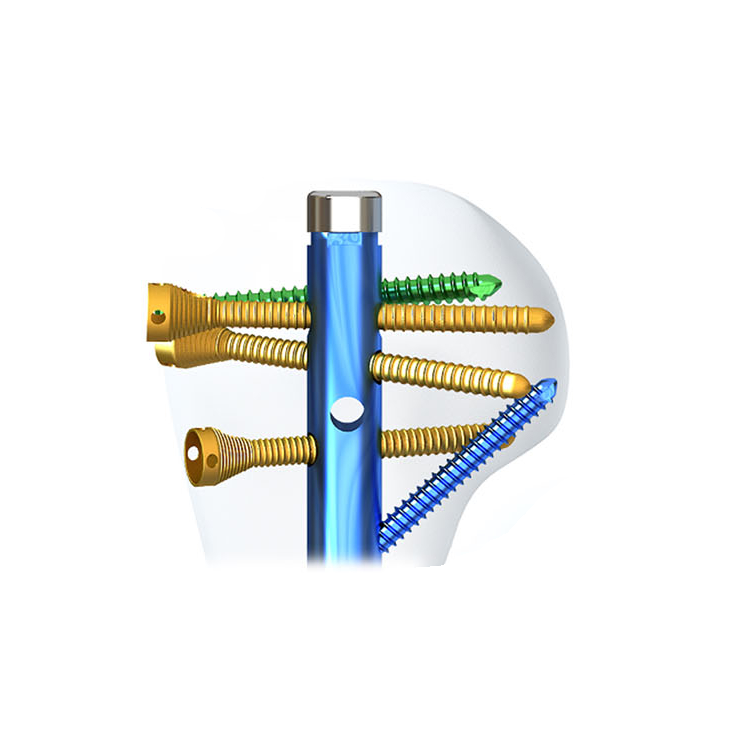

• Screw-in-screw design to further improve the fixation strength of osteoporosis.
• Blunt head of locking screw design to reduce the risk of excessive penetration.
• Locking screw countersinking design to reduce soft tissue irritation.

• Short screw: Two different plane holes for locking.

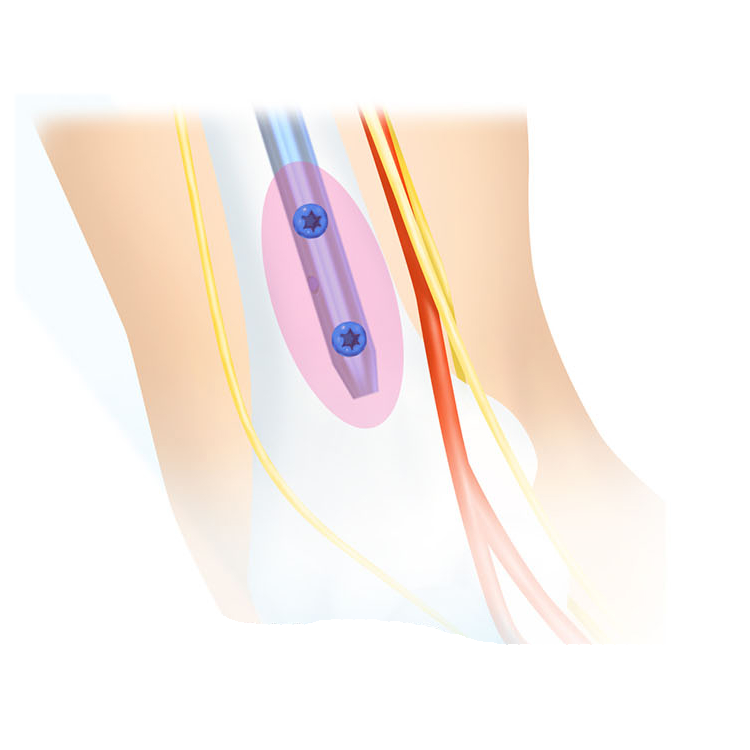

• Long screw: Three locking holes that avoid important blood vessels, located in the safe area between the median nerve and the radial nerve.
• Two anterior and posterior locking holes facilitate manual operation, minimizing the occurrence of rotation and displacement of distal fractures.

• Special design of compression holes helps to increase the stability of transverse or short oblique fractures.
• Self-sustaining compression mechanism—no static screw is needed to maintain compression during the operation.

Compared with G3 with a radian radius of 1.5m, the distal location of TFNA with a radian radius of 1.0m in the center of the medullary cavity is twice as likely to achieve optimal anatomical fit.
