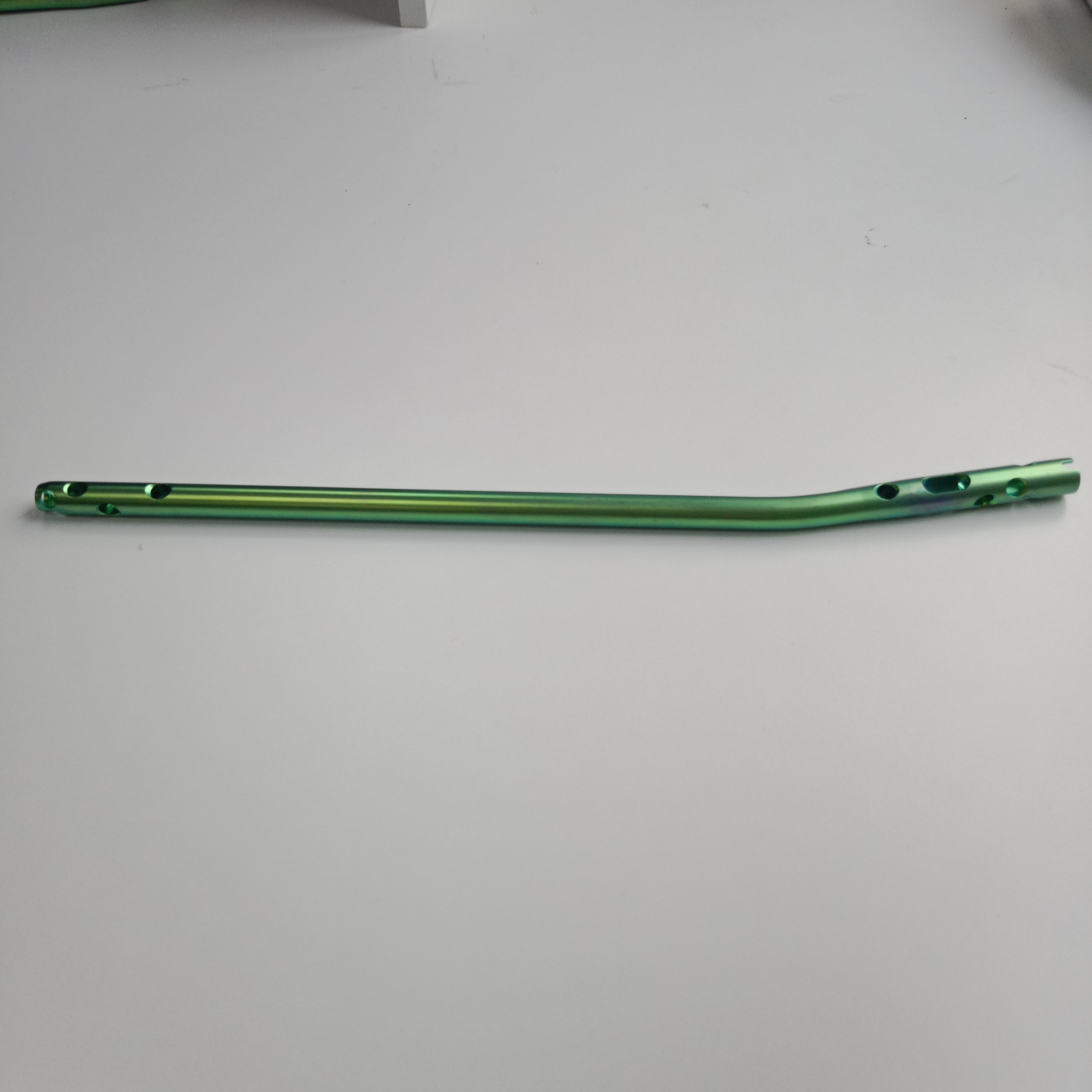

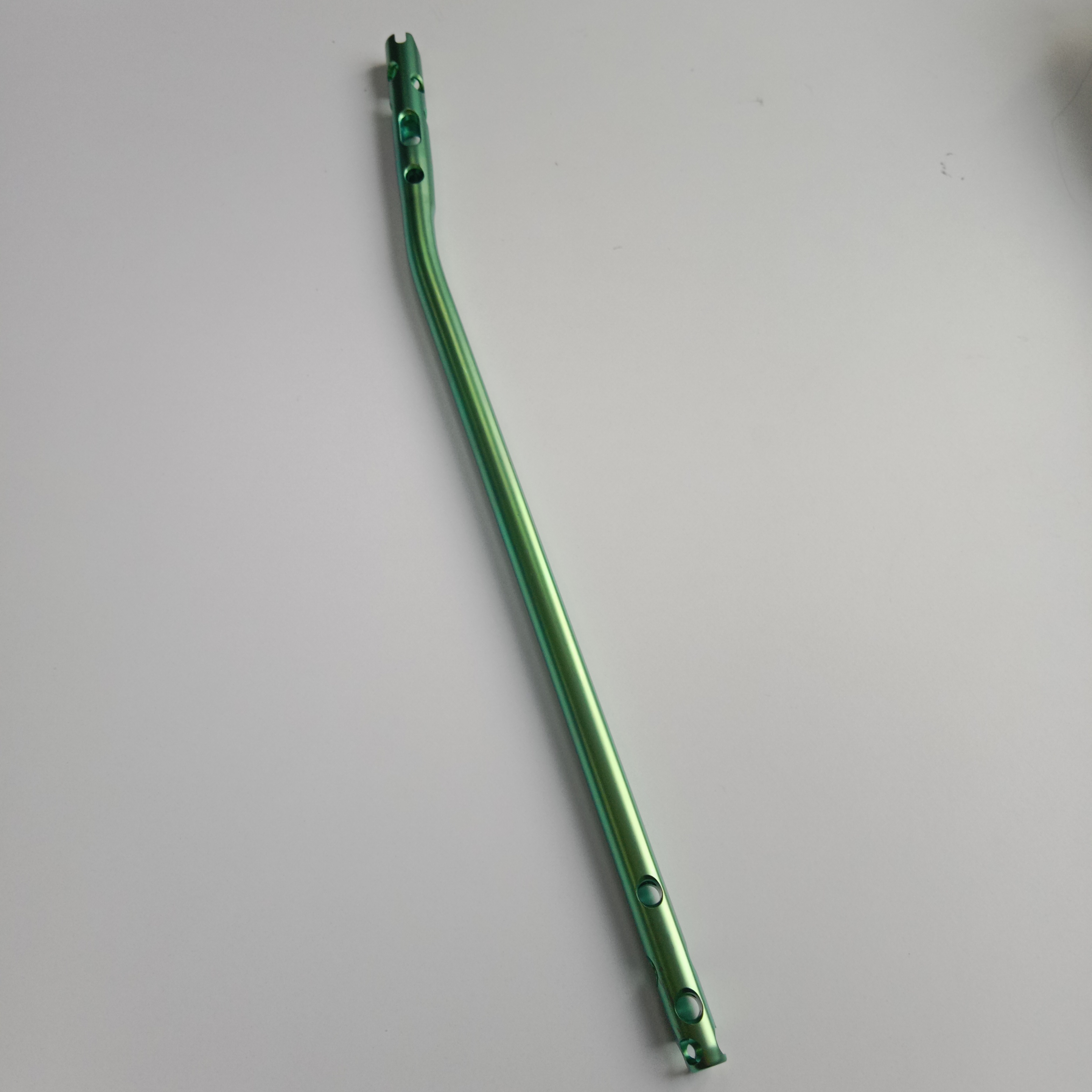

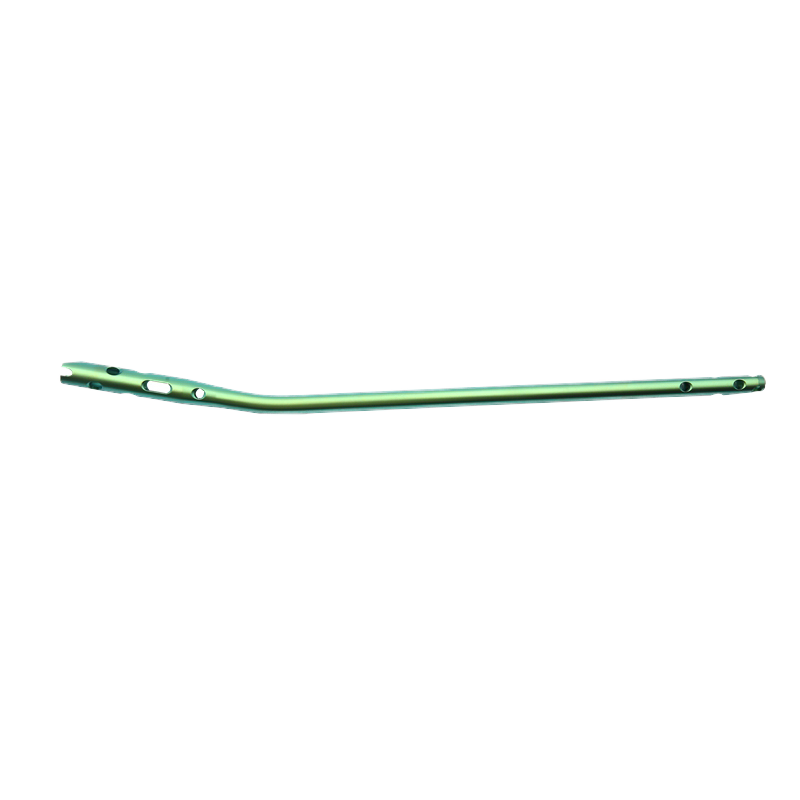

Geasure Titanium Alloy Intramedullary Tibia Nail Interlocking Orthopedic Implant Class III 1 Year Warranty

Product Description

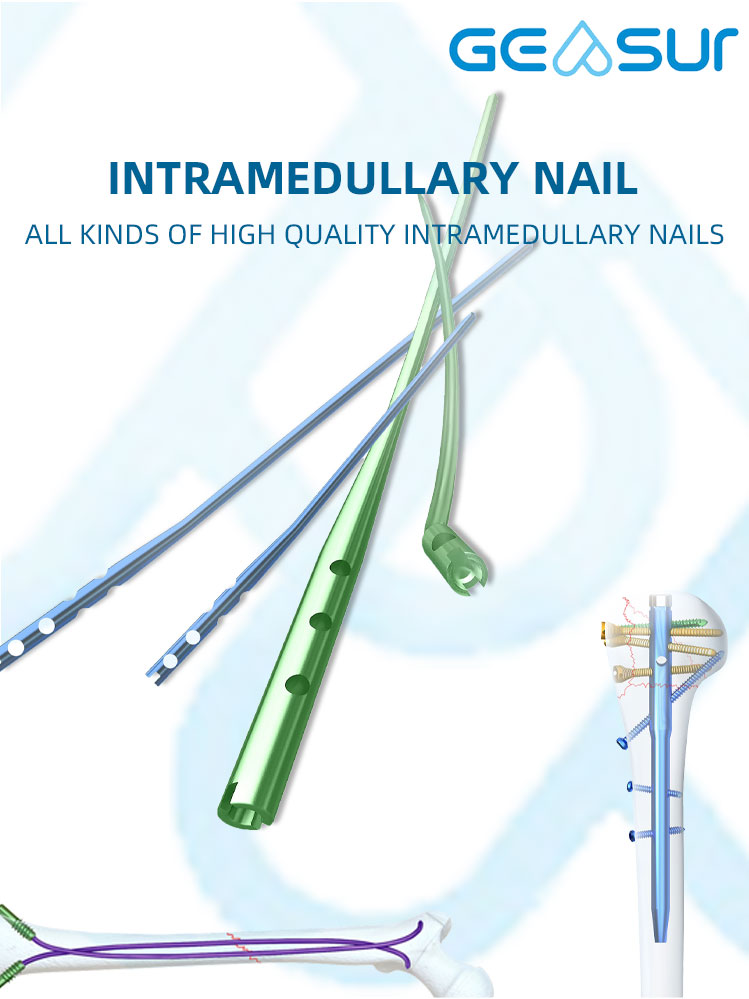

Intramedullary Nail System Banner
Orthopedic Solutions
Semi-Automatic PET Bottle Blowing Machine
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Products Description
Intramedullary Nail System
Intramedullary Nail Key Features
  • All kinds of high quality intramedullary nails
  • Easy to insert and take out
  • Titanium alloy material
  • Reduce the risk of outer wall impact and main nail inward movement
  • The diameter is suitable for all applications
  • Simple operation and minimally invasive implantation
Product name Model Specification Material Code
Proximal Femoral Nail Antirotation Intramedullary Nail SGM-IIK 9.0×170×130° Titanium Alloy 15649170
Proximal Femoral Nail Antirotation Intramedullary Nail SGM-IIK 9.0×200×130° Titanium Alloy 15649200
Proximal Femoral Nail Antirotation Intramedullary Nail SGM-IIK 9.0×240×130° Titanium Alloy 15649240
Proximal Femoral Nail Antirotation End Cap SGM-IIK 10×15 Titanium Alloy 15601115
Proximal Femoral Nail Antirotation End Cap SGM-IIK 10×20 Titanium Alloy 15601120
Proximal Femoral Nail Antirotation Blade SGM-IIK 10.5×70 Titanium Alloy 15600570
Proximal Femoral Nail Antirotation Blade SGM-IIK 10.5×80 Titanium Alloy 15600580
Proximal Femoral Nail Antirotation φ4.9 locking screw SGM-IIK 4.9×30--72 Titanium Alloy 15604930
Femoral Nail locking screw I SGG-IIIK 6.5×75 Titanium Alloy 15246575
Femoral Nail Intramedullary Nail SGG-IIIK 9.0-13.0 Titanium Alloy 15249340
Humeral nail Intramedullary Nail SHG-IK 8 Titanium Alloy 15728160
Our Advantages
1.0mradian radius
1.0mradian radius: The length is consistent with the anatomy of the FEMORAL medullary cavity.
Screw-in-screw design
Screw-in-screw design: To further improve the fixation strength of osteoporosis. The Blunt End Design of the locking screw reduces the risk of excessive penetration.
Short & Long nail specifications
Short & Long nail specifications: Short nail: diameter of 8.0/ 9.5mm, length of 160mm. Long nail: diameter of 7.0/ 8.5mm, length of 180-315mm (15mm interval). All nails have left and right type, titanium alloy material.
Details Images
Proximal fixation
Proximal fixation:
Multi-plane and Multi-locking screw fixation options, multiple options for operation, to achieve optimal fixation stability. Screw-in-screw design to further improve the fixation strength of osteoporosis. Blunt head of locking screw design to reduce the risk of excessive penetration. Locking screw countersinking design to reduce soft tissue irritation.
Distal fixation
Distal fixation:
Short screw: two different plane holes for locking. Long screw: three locking holes avoid important blood vessels, located in the safe area between the median nerve and the radial nerve. Two anterior and posterior locking holes facilitate the manual operation, minimizing the occurrence of rotation and displacement of distal fracture.
Elastic Nail
Elastic Nail:
Nail diameter should be 30-40% of the narrowest transverse diameter of medullary cavity. Apply to 3mm/ 6-8 years old; 3.5mm/ 9-11 years old; 4.0mm/ 12-14 years old.
Compression
Compression:
Special design of compression holes. helps to increase the stability of transverse or short oblique fractures. Self-sustaining compression mechanism, no static screw is needed to maintain compression during operation.
TFNA System
TFNA System TFNA:
Compared with G3 with radian radius of 1.5m, the distal location of TFNA with radian radius of 1.0m in the center of medullary cavity is twice as likely as that of G3.
TFNA Details Graphic
Main Products
Company Profile

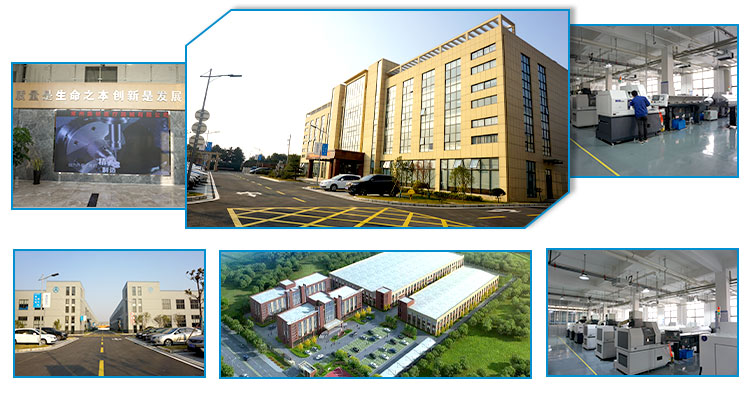

Production Facility Office
Manufacturing Cleanroom
We are a leading enterprise in China for the research, manufacturing, and operation of orthopedic medical devices. Our sales network covers the entire country, and we have sales offices in multiple regions. With first-class production equipment, a professional R&D and technical manufacturing team, a quality management system that complies with international standards, and an efficient marketing service strategy, we have gained recognition from many partners.
The company has a team consisting of several senior R&D technicians, who have many years of experience in the orthopedic medical device industry and have achieved unique accomplishments in this field. We always prioritize the development of talent strategy, continuously improving and building a high-quality, highly R&D-capable professional innovation team. We adhere to the development concepts of technological innovation, product innovation, and service innovation, integrate and consolidate advantageous resources, serve the health cause, and strive hard and bravely forward.
Machinery and Equipment
Quality Inspection Center
Why Choose Us
Why Choose Us Advantages
FAQ
Would you please give some information on shipping mode and charges?
Normally we send through courier like DHL, FEDEX, UPS, TNT etc or post upon request from clients.
Do you have ISO9001, ISO 13485, CE approvals?
Yes, we hold ISO9001, ISO13485, and CE certifications for our orthopedic implants, including the Gamma Type I Intramedullary Nail. We can provide certificate copies upon request.
What is the minimum order that we can place? Do you provide free samples?
We expect your minimum orders to be least at US$500. However, we understand that customers need to place smaller samples orders in the beginning in order to test market our products. We could offer the free samples, but do not pay the cost of freight.
Can I buy products not shown but similar to your catalogue?
Of course you can, just send us pictures or samples. But this takes a little longer time for delivery.
Do you have stock for listed products, or they are newly produced? What are your terms of payment?
Generally, we have stock for every listed products, which were produced monthly. But it depends on our sales condition. Better to ask our salesman for accurate inventory information. Payment<=800USD, 100% in advance. Payment>800USD, 30% T/T in advance, balance before shipment. Payment methods are via L/C, T/T, Western Union, PayPal etc.
How can we request custom specifications for orthopedic implants?
Please send your specific medical grade requirements, structural designs, or samples to our technical team, and we will evaluate and arrange customized manufacturing for your needs.
