The locking screw concept was produced for the first time in 1995. With locking compression plate put in use, it became one of the most important developments for plate and screw internal fixation in recent years. Locking screws provide the ability to create a fixed-angle construct while utilizing familiar conventional plating techniques. The fixed-angle construct functions like internal fixators which maintain primary and secondary loss of reduction. This kind of construct also provides improved fixation in osteopenic bone or multifragment fractures where traditional screw purchase is compromised. LCP constructs do not rely on plate-to-bone compression to maintain stability. Therefore, the periosteum will be protected and the blood supply to the bone preserved. With these distinguished improvements, structural stability is greatly optimized.
| Product Name |

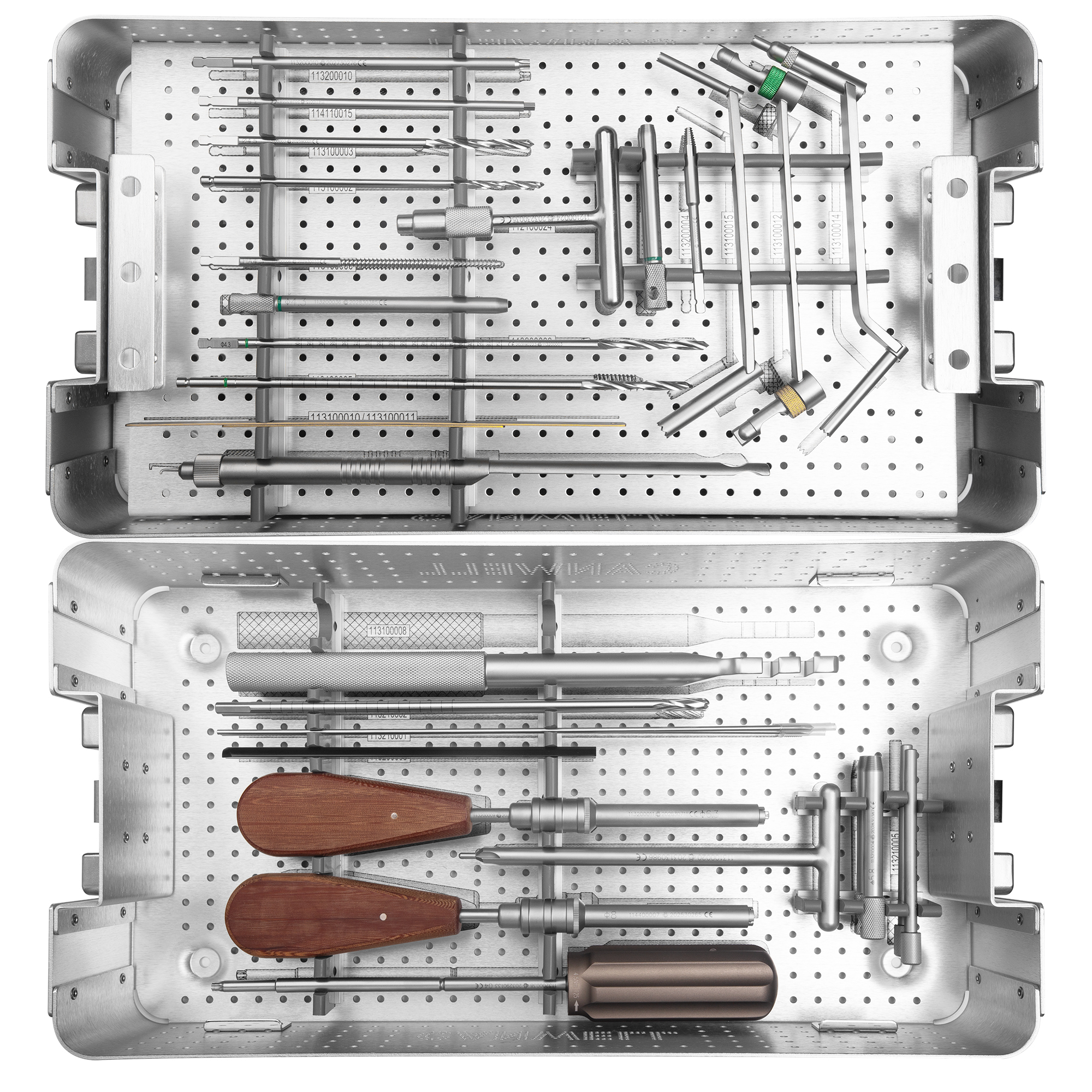

Hot Selling Surgical Instrument set of Large Fragment Locking Plating System Orthopedic Instruments |
| Material |
Ti-6AL-4V material, with MRI compatible |
| Color |
Customized |
| Standard |
ISO:13485/ISO:9001/CE |
| Brand |
OEM Available |
| Screw |
5.0mm/6.5mm Locking Screw |
| Used |
Bone fracture |
| Indication |
The LCP system applies to many different plate types and is therefore suitable for a large number of fracture types.
Malunions, nonunions
Osteotomies
Fractures
|
| Features & Benefits |
The Combi-holes allow placement of conventional cortex and cancellous bone screw on one side or threaded locking screw on the opposite side of each hole.
Periarticular Plates are pre-contoured to create an anatomical fit that requires little or no additional bending that minimizes impinging on soft tissues.
Locking screw with stardrive recess.
Locking screw with self-tapping flutes.
The large core diameter improves bending and shear strength of the screw, distributing the load over a large area in the bone.
Special double lead thread beneath the screw head engages and locks into the threaded holes of the plate.
|
HD 60125623 0001
EN ISO 13485:2016
EN ISO 13485:2016
Medical Device Manufacturer Overview
A medical device company founded in 1994, is now one of the designers, manufacturers, and suppliers of orthopedic implants and instruments. We have over 60,000 square meters of workshop. We are a long-term instrument contract manufacturer of top orthopedic companies. The product lines include traumatology, spinal fixation systems, and surgical instruments, covering products such as femoral nails, titanium plates and screws, pedicle screws with rods, PEEK cages, balloon kyphoplasty for spine fractures, and other instrument sets, sold globally in Europe, Latin America, the Middle East, and Asia.
VR Showroom Preview
Frequently Asked Questions
QWould you please give some information on shipping mode and charges?
Normally we send through courier, or post upon request from clients. Shipping charges vary depending on the destination and weight of the order.
QDo you have ISO 9001, CE?
Yes, we are an ISO 9001 and ISO 13485 Certified Company. We have CE mark certificates for many of our products.
QWhat is the minimum order that we can place?
We expect your minimum orders to be at least US$1000. However, we understand that customers need to place smaller sample orders in the beginning in order to test market our products. Samples against cost are available on request.
QCan I buy products not shown but similar to your catalogue?
Of course you can, just send us pictures or samples. But this takes a little longer time for customized design and delivery.
QDo you have stock for listed products, or are they newly produced?
Generally, we have stock for every listed product, which is produced monthly. However, it depends on our sales conditions. It is better to ask our sales team for accurate inventory information.
QWhat materials are used for the orthopedic implants?
The implants are made of medical-grade Ti-6AL-4V titanium material, which features high biocompatibility and is compatible with MRI procedures.
