Medisplint
Medisplint
| Description | Details |
|---|---|
| Properties | Veterinary Surgical Instruments |
| Tipo | Orthopedic drill and saw, animal products |
| Uso | Other veterinary instrument anatomy appliances |
| Instrument Classification | Class II |
| Garantia | 2 anos |
| Input Voltage | 100V-250V |
| Bateria | Lithium bateria / Ni-MH bateria |

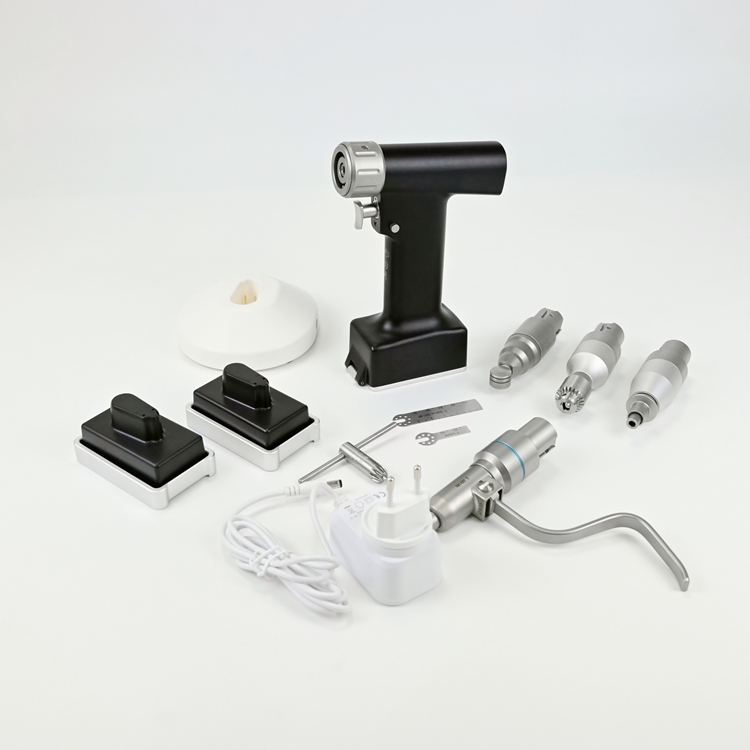

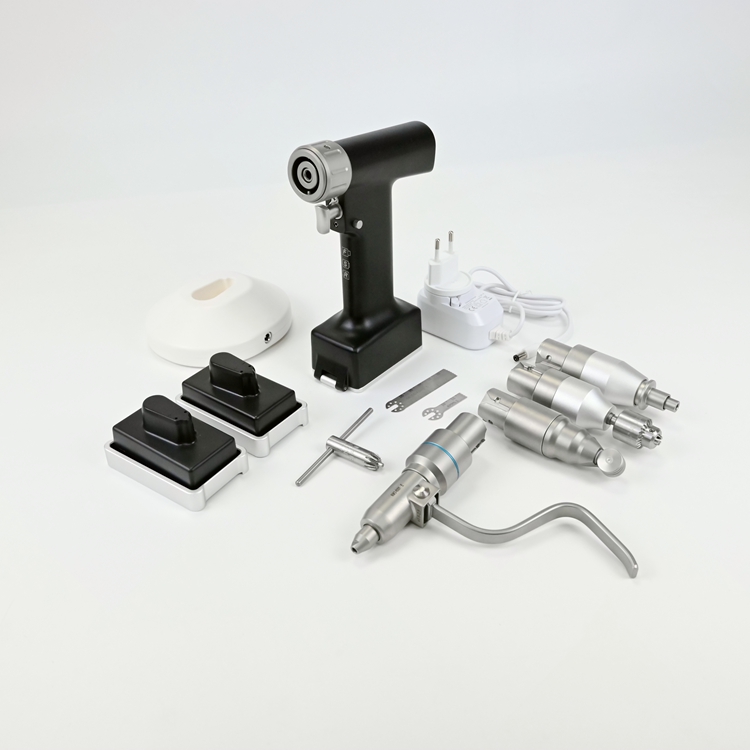

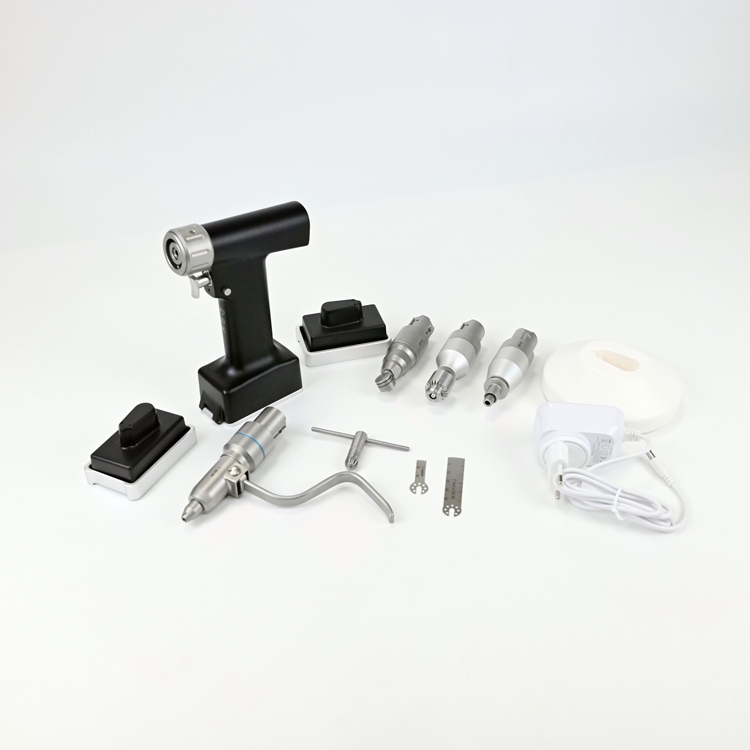

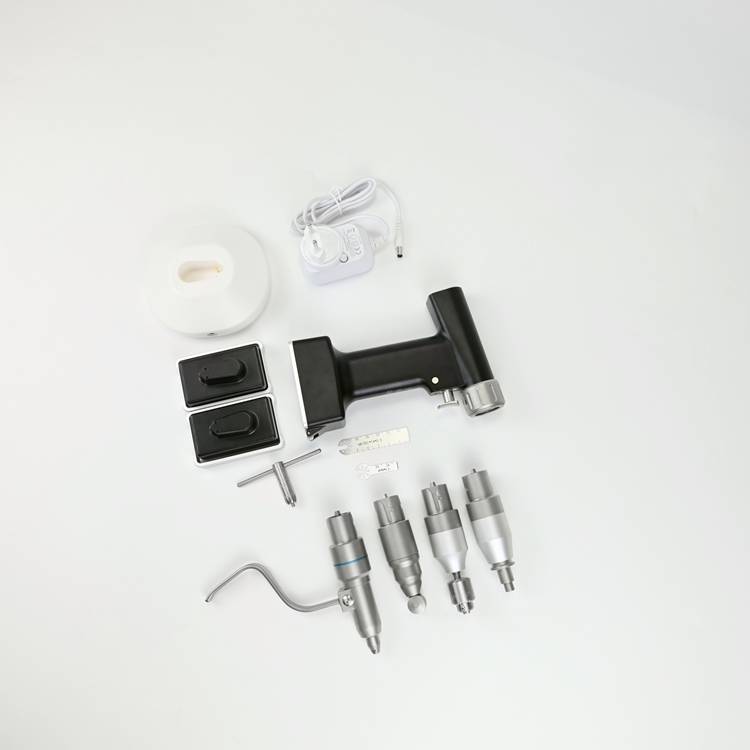

| No. | Accessory | Qty. | Data |
|---|---|---|---|
| 1 | Small Handpiece (Aluminum Alloy) | 1 | Brushless motor, quick coupling, 0.8kg, can be connected with four adapters, autoclavable up to 135°C, no-load noise ≤45dB |
| 2 | Battery rechargeable | 2 | 7.2V, 1800mah, could not be sterilized, could last for 30 minutes after fully charged |
| 3 | Charger | 1 | 110-220V, match both EU/UK/American/AU type, etc. |
| 4 | Jacobs drill chuck | 1 | 0-1300rpm, torque 2.9N.m, gripping diameter ≤4mm, imported, high coaxiality, suitable for trauma surgeries |
| 5 | Small oscillating Saw | 1 | 0-16000cpm, used for joint surgeries |
| 6 | Small saw blade | 2 | 7 stars blades with optional sizes, imported material |
| 7 | Small AO drill chuck | 1 | Trauma surgery for AO Type, it's for drilling holes and fixing the plates |
| 8 | Small K-Wire pin driver | 1 | Holding Kirschner needle pin very conveniently |
| 9 | Sterilizing channel | 1 | Could be sterilized |
| 10 | Aluminum packing case | 1 | 445*270*150mm, Weight: 1kg |
Yes, the small handpiece (aluminum alloy) and the sterilization channel are fully autoclavable and can be sterilized up to 135°C. However, please note that the rechargeable batteries cannot be sterilized.
Each rechargeable 7.2V 1800mAh Ni-MH/Lithium battery can last for approximately 30 minutes of continuous operation. The kit is supplied with two batteries to ensure an uninterrupted power supply during surgery.

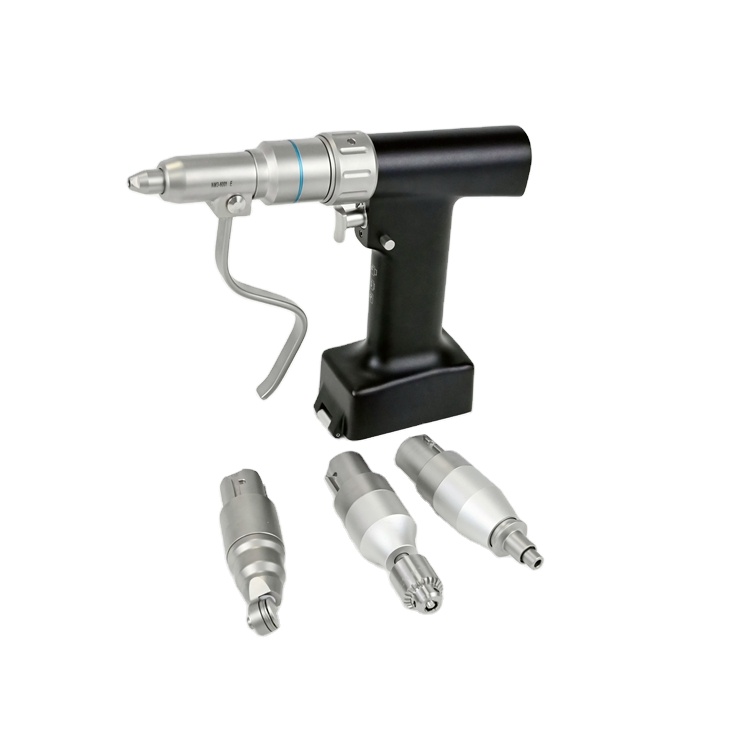

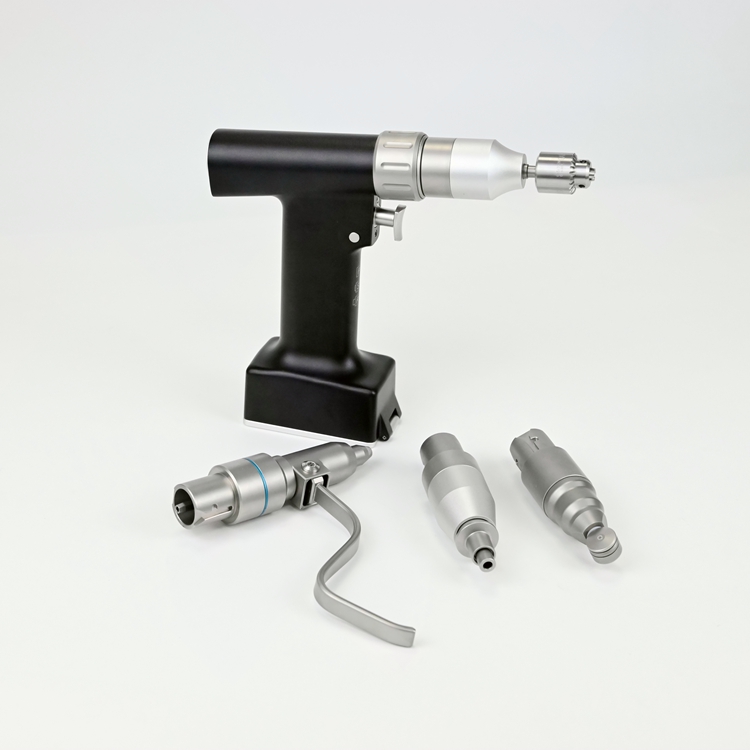

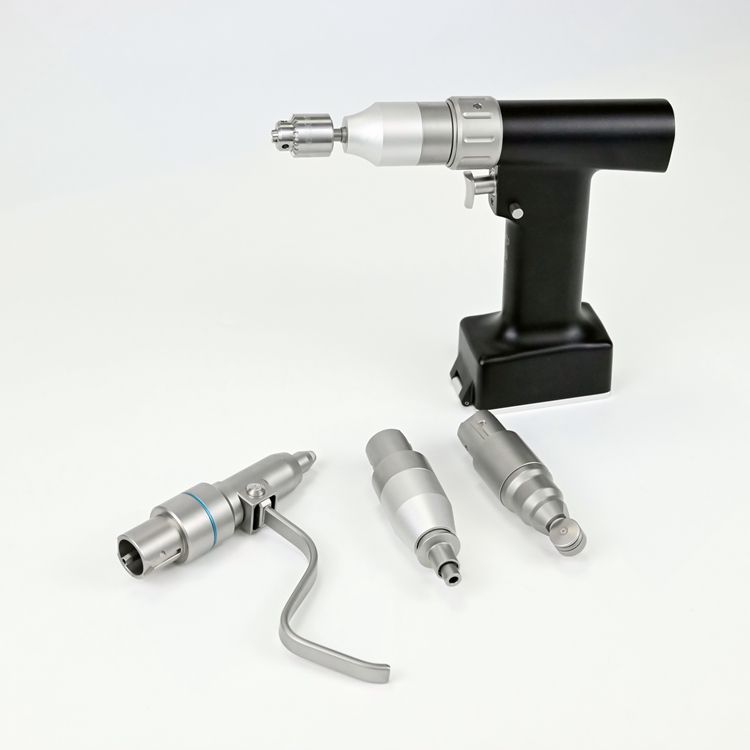

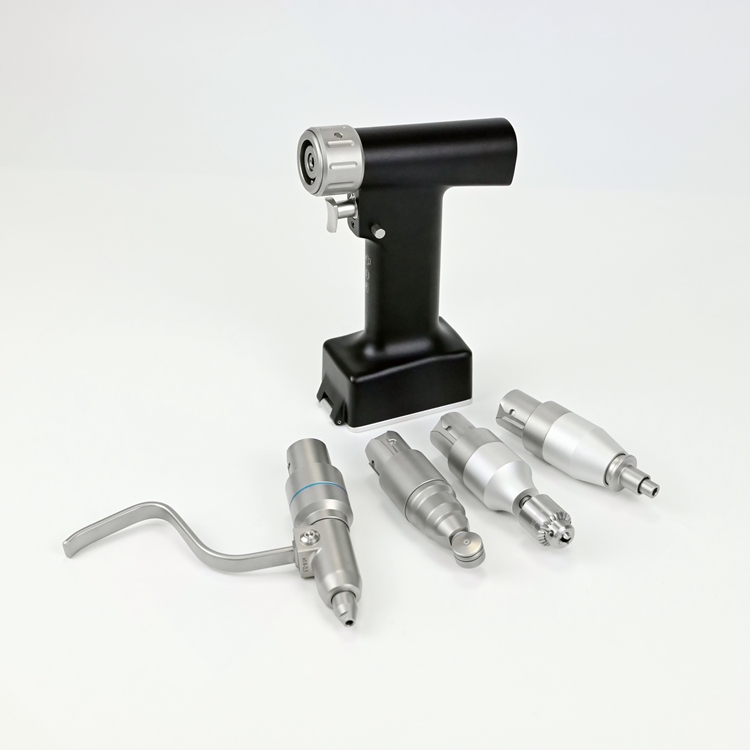

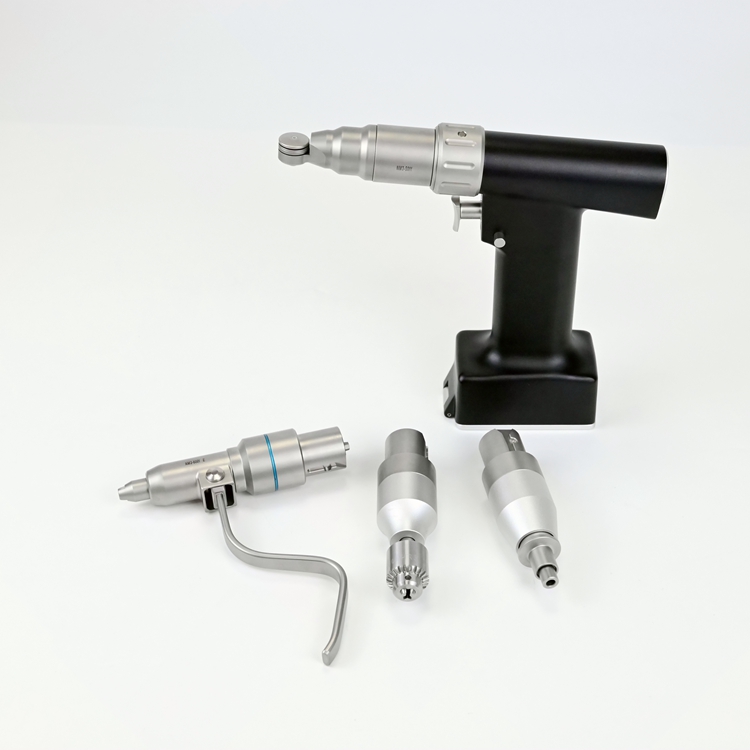

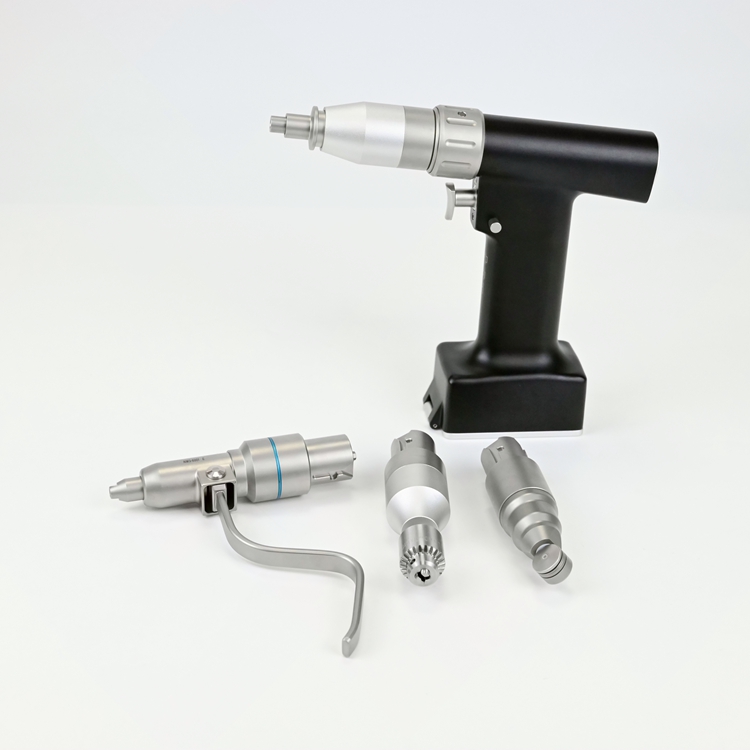

The handpiece features a quick-coupling mechanism and can connect with up to four different adapters, including the Jacobs drill chuck (0-1300rpm), the small oscillating saw, the small AO drill chuck, and the small K-Wire pin driver.
The veterinary surgical instruments are provided with a standard 2-year warranty covering manufacturing defects and operational performance issues under normal usage conditions.
Yes, the charger supports an input voltage range of 110-220V and can be configured with EU, UK, US, or AU type plugs to match different local power supply standards.

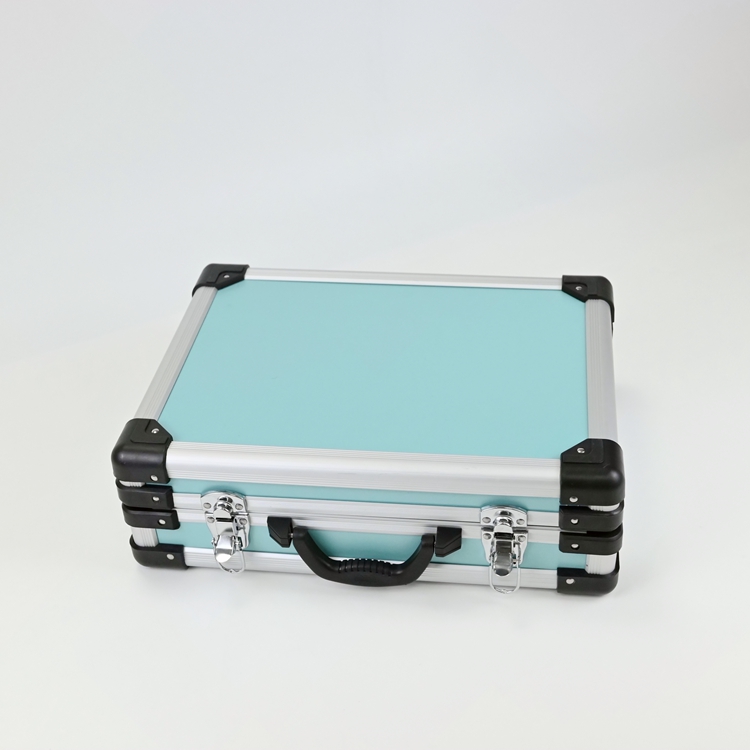

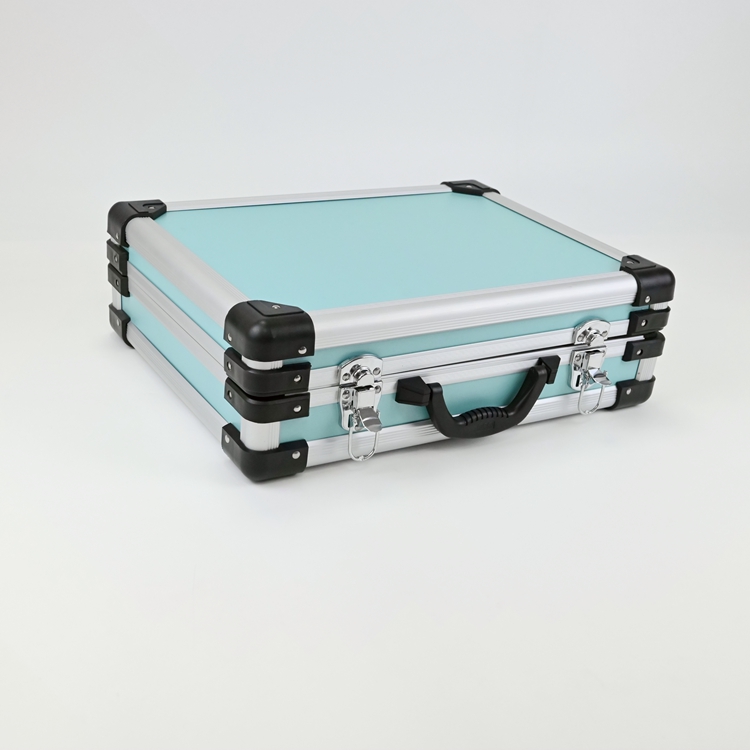

The entire set is packaged inside a durable aluminum packing case measuring 445*270*150mm. The empty case weighs 1kg, making it compact and easy to transport.
