Veterinary Orthopedic Mini Drill Reaming Slow Speed Drill High Speed Drilling for Vet Small Bone
Veterinary Orthopedic Mini Drill Reaming Slow Speed Drill High Speed Drilling for Vet Small Bone
Veterinary Orthopedic Mini Drill Reaming Slow Speed Drill High Speed Drilling for Vet Small Bone
Veterinary Orthopedic Mini Drill Reaming Slow Speed Drill High Speed Drilling for Vet Small Bone
Veterinary Orthopedic Mini Drill Reaming Slow Speed Drill High Speed Drilling for Vet Small Bone
1 / 5
Veterinary Orthopedic Mini Drill Reaming Slow Speed Drill High Speed Drilling for Vet Small Bone
Veterinary Orthopedic Mini Drill Reaming Slow Speed Drill High Speed Drilling for Vet Small Bone
Veterinary Orthopedic Mini Drill Reaming Slow Speed Drill High Speed Drilling for Vet Small Bone
Veterinary Orthopedic Mini Drill Reaming Slow Speed Drill High Speed Drilling for Vet Small Bone
Veterinary Orthopedic Mini Drill Reaming Slow Speed Drill High Speed Drilling for Vet Small Bone

Veterinary Orthopedic Mini Drill Reaming Slow Speed Drill High Speed Drilling for Vet Small Bone

Send Inquiry

Product Description

E100 Electric Surgical Power Tools Orthopedic Multifunction Drill and Saw System

Item Value

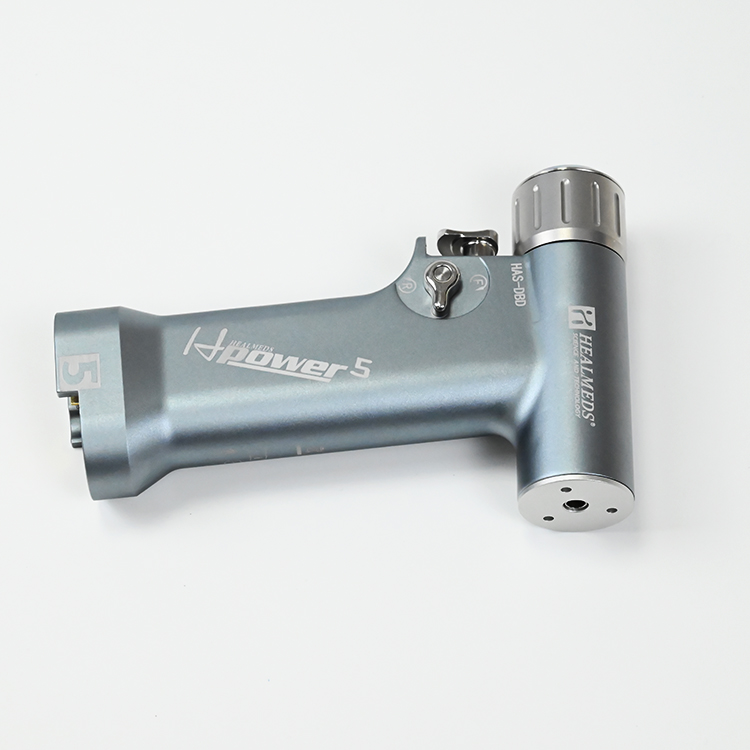

Multi-Function Handpiece Equipped with brushless DC canulated motor imported from USA
Battery Ni-MH with Longer service-life, High capacity: 2100MAH Voltage: 9.6V
Battery Box Peek material: sterilized more than 3000 times
Charger More convenient design to guarantee the battery life
Transfer Shield Imported stainless steel 304
Key Chuck Speed Range 0-1200rpm, Torque 3.5NM
Reaming Attachment Speed Range 0-400rpm, Torque 10NM
K-wire Attachment 0.7-1.6mm / 1.6-4.0mm
Reciprocating Saw Frequency: 0-12000cpm
Sterilizing Box 445*275*215mm, 4.6Kg

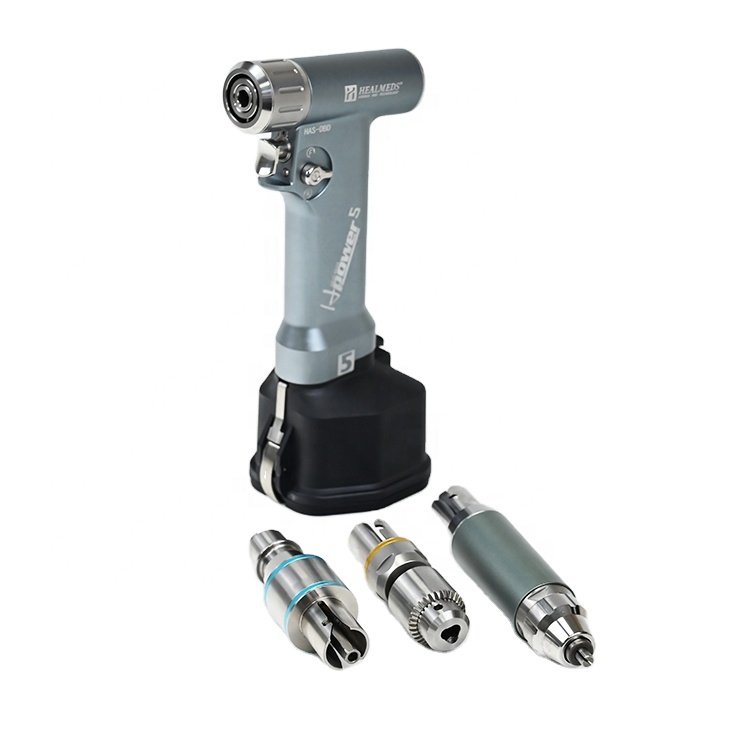

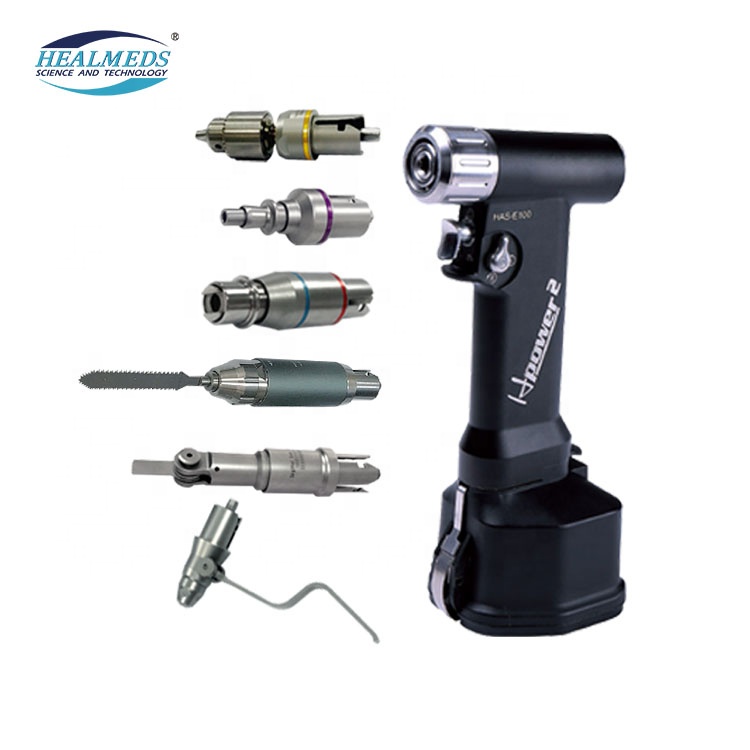

Veterinary Orthopedic Mini Drill Reaming Slow Speed Drill

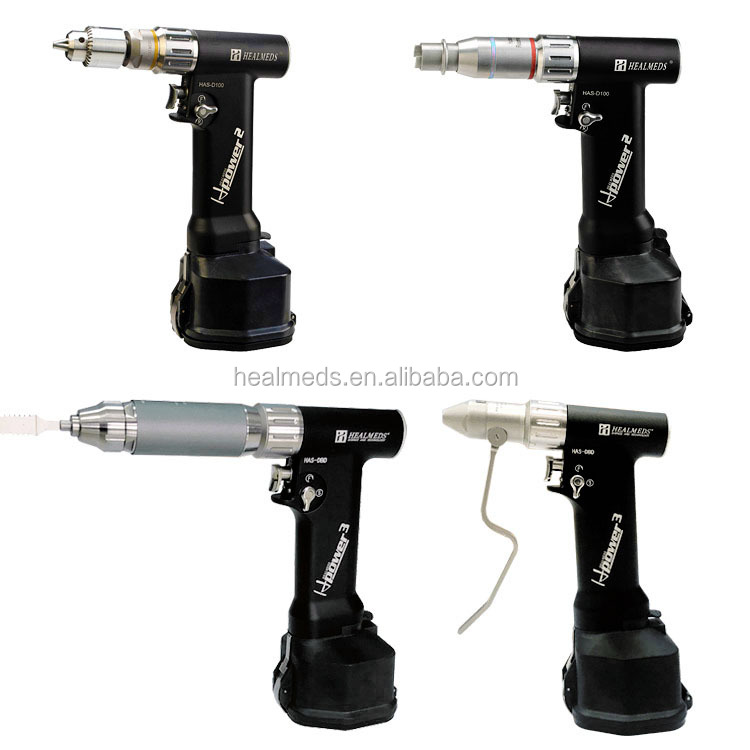

Veterinary Orthopedic Mini Drill High Speed Drilling

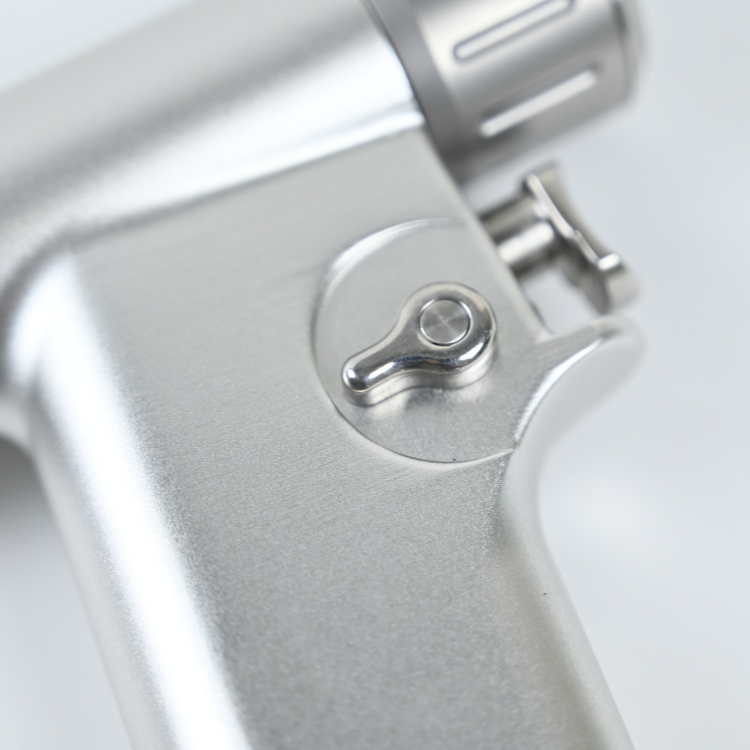

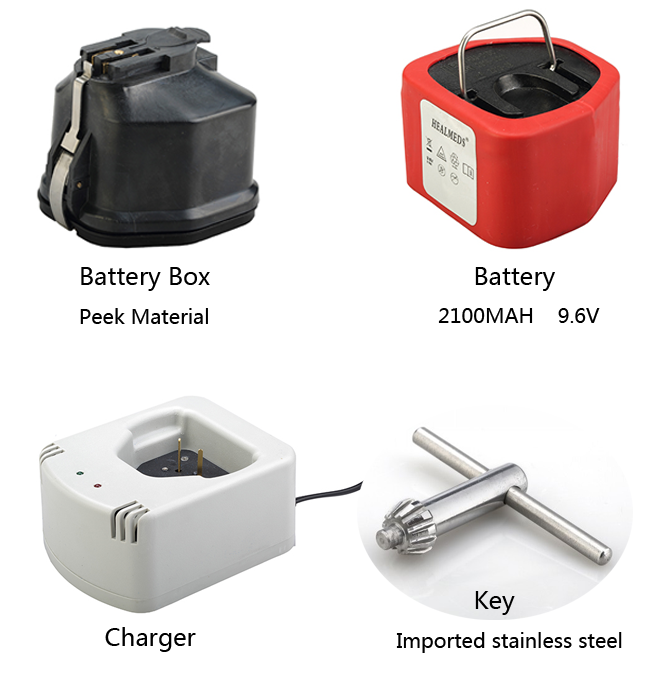

Surgical Power Tools Details

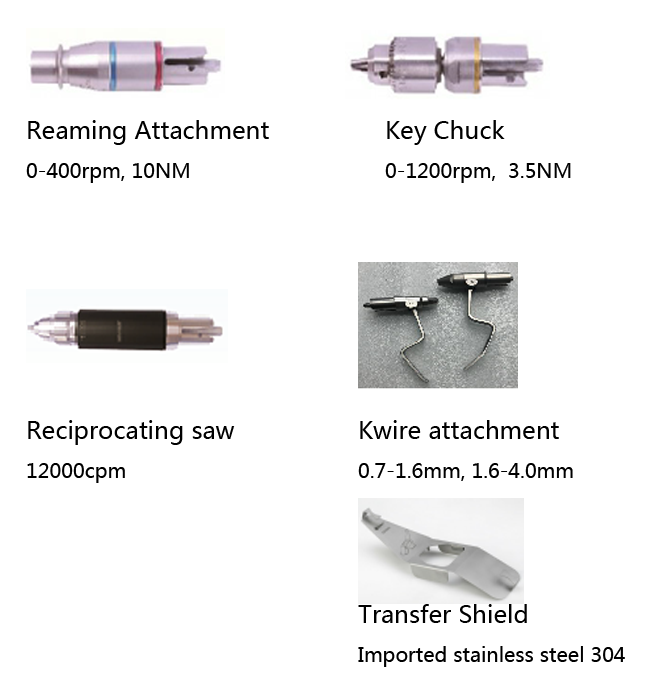

Orthopedic Drill Saw System Accessories

Key Features

  • High-performance imported brushless motor
  • No-limit speed changing
  • Big capacity 2100mAh safe battery
  • High sealing system
  • One-hand operation
  • Perfect ergonomic design
  • Adapter integrated in the charger
  • Long service life (2 years warranty for whole machine)
  • Autoclavable at 135°C (Improved type ≤ 155°C) with 1.6Mpa

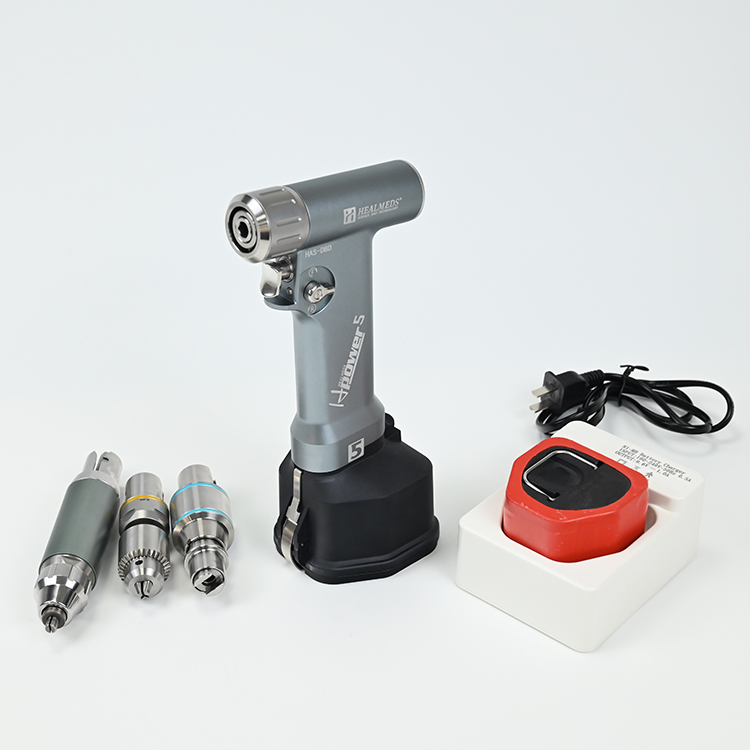

Standard Configuration

  • 1. One handpiece
  • 2. One battery
  • 3. One charger
  • 4. One key chuck or reaming Attachment
  • 5. One sterilization channel
  • 6. One aluminum alloy case

Warranty Details

Whole Machine & Motor: 2 Years

Battery & Fast Consumption Items: 3 Months

Operational Notes

  • Sterilize temperature ≤ 135°C (Improved type ≤ 155°C). Exceeding this limits may damage the motor.
  • Normal bone drills only support bits under 6mm. Acetabulum reaming drill holds big torque with around 300 rpm. Canulated drill runs around 600 rpm.
  • Batteries must be removed from the power tool after surgery. Otherwise, minimal automatic discharge will shorten battery life.
  • The battery cannot be sterilized and is not autoclavable.
  • Wash cranial burs immediately post-surgery to avoid blood sticking, then dry immediately.
  • Ensure the battery compartment inside the handpiece remains completely dry after sterilization.

Related Products

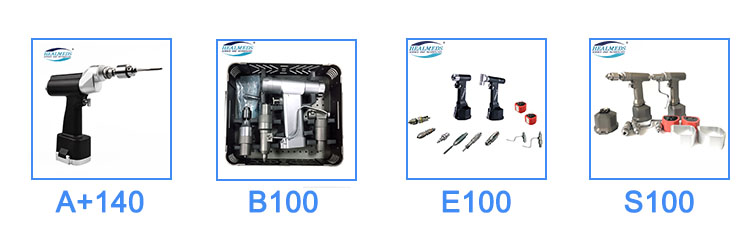

Related Orthopedic Surgical Drill and Saw Attachments

Certifications

Certification 1
Certification 2
Certification 3
Certification 4

Packaging & Shipping

Packaging Case Design

Frequently Asked Questions (FAQ)

Q1: What is the maximum sterilization temperature for the E100 system?
A: The standard sterilization temperature must not exceed 135 °C. For the improved type, it can handle up to 155 °C. Exceeding these temperatures will damage the brushless motor.
Q2: Can the battery pack be sterilized in an autoclave?
A: No. The battery cannot be sterilized and is not autoclavable. Please ensure the battery is taken out before sterilizing the handpiece.
Q3: How long is the warranty coverage for this surgical power tool?
A: We provide a 2-year warranty for the main handpiece structure and the motor. Fast-consumable items and batteries are covered under a 3-month warranty.
Q4: How should the battery be managed between surgeries?
A: The battery must be removed from the handpiece immediately after the surgical procedure. Leaving the battery inside the tool causes automatic micro-discharge, which significantly shortens its service life.
Q5: What are the speed and torque specs for the key chuck and reaming attachments?
A: The Key Chuck attachment operates within 0-1200 rpm with a torque of 3.5NM, whereas the Reaming Attachment operates within 0-400 rpm with a stronger torque capacity of 10NM.
Q6: How should the cleaning and maintenance of the attachment be performed?
A: For attachments like the cranial bur, they must be washed with a purger immediately after surgery to prevent blood from drying inside, followed by a complete dry. Ensure no moisture remains in the handpiece's battery channel after sterilization.
Orthopedic Drill FAQ Technical Details Chart
