Medisplint
Medisplint

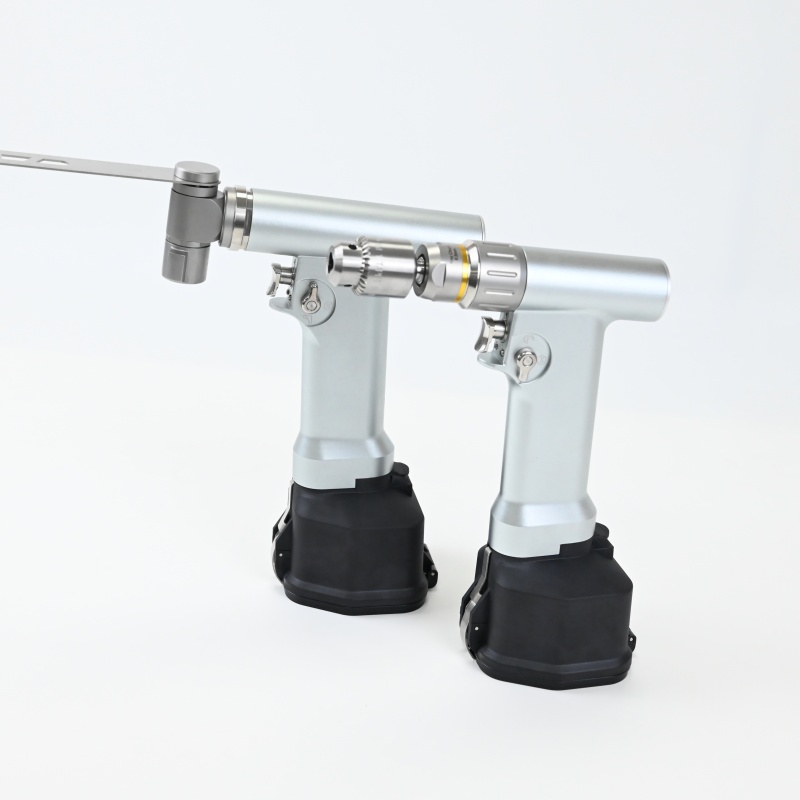

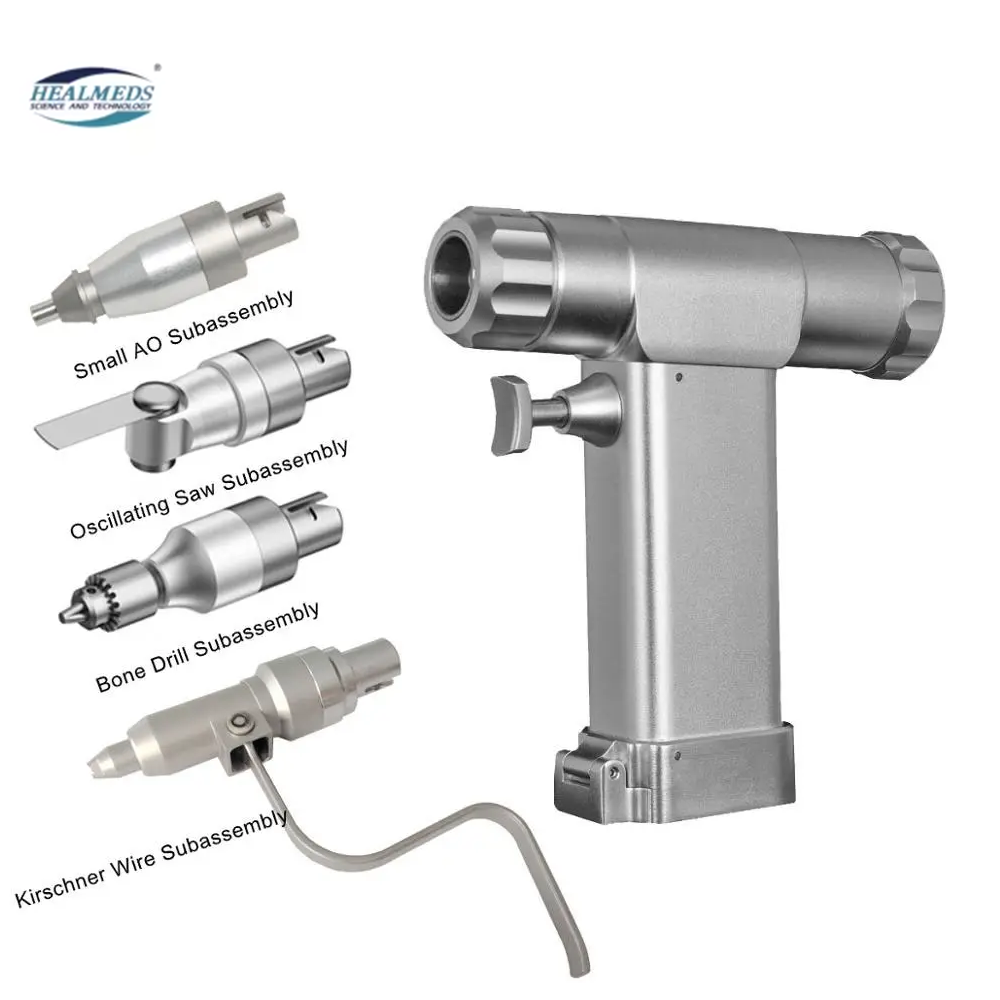

Based on the Conmed, our E100 Bone Saw includes a wide range of heavy-duty drills and saws. The battery and performance are the same as the Conmed, with dual-speed control for multiple cutting options. The reciprocating saw is compact and has excellent ergonomics. It cuts faster and harder. The rotating handle allows for high-speed drilling and high-torque reaming. It utilizes innovative motor technology to provide less vibration and better handle control. There are single and dual trigger options as well as reaming and drilling attachments. It also comes with a modular sterilization container and batteries.
| Item | Value |
|---|---|
| Multi-Function Handpiece | Equipped with brushless DC canulated motor imported from USA |

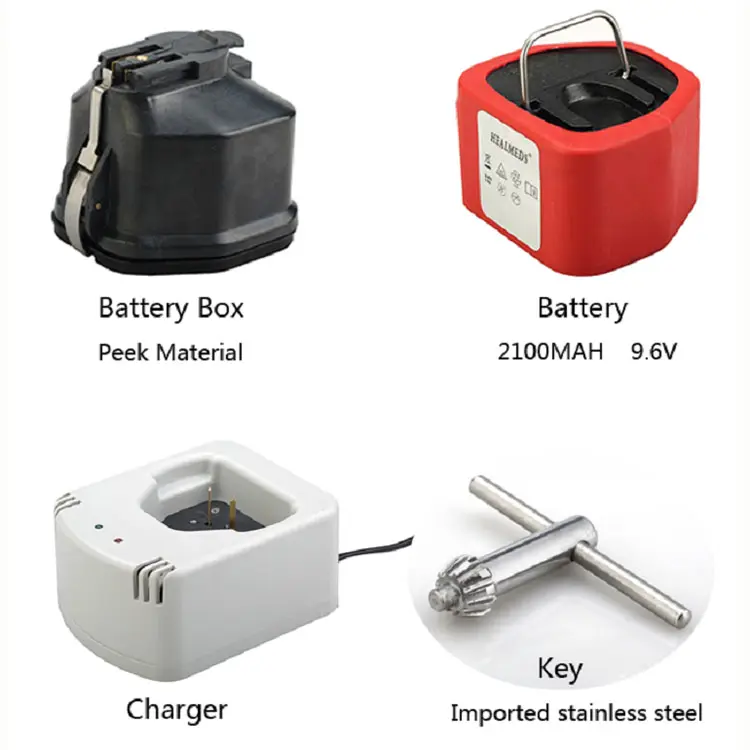

| Battery | Ni-MH with Longer service-life, High capacity: 2100MAH, Voltage: 9.6V |
| Battery Box | Peek material: sterilized more than 3000 times |
| Charger | More convenient design to guarantee the battery life |
| Transfer Shield | Imported stainless steel 304 |
| Key Chuck | Speed Range 0-1200rpm, Torque 3.5NM |
| Reaming Attachment | Speed Range 0-400rpm, Torque 10NM |
| K-wire Attachment | 0.7-1.6mm / 1.6-4.0mm |
| Reciprocating Saw | Frequency: 0-12000cpm |
| Sterilization Box | 445 * 275 * 215mm, 4.6Kg |
The E100 Multi-Function Handpiece is powered by a high-quality brushless DC canulated motor imported directly from the USA, ensuring stability, low noise, and high power output.

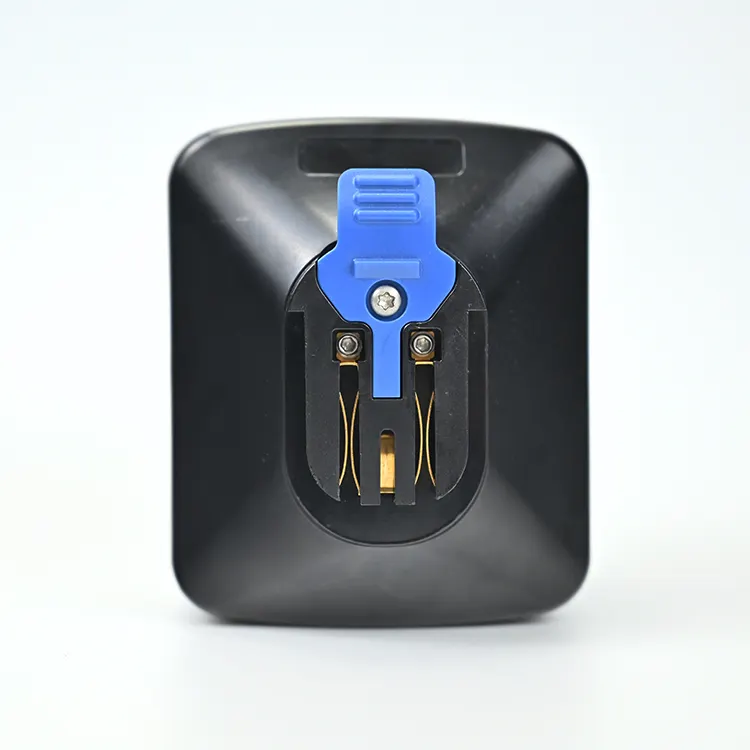

The battery box is manufactured using premium Peek material, which is highly resistant to heat and chemicals, allowing it to undergo autoclave sterilization more than 3,000 times without degradation.
The Key Chuck Attachment operates within a speed range of 0-1200 rpm with a torque of 3.5 N-m, while the Reaming Attachment operates within 0-400 rpm with a maximum torque of 10 N-m.

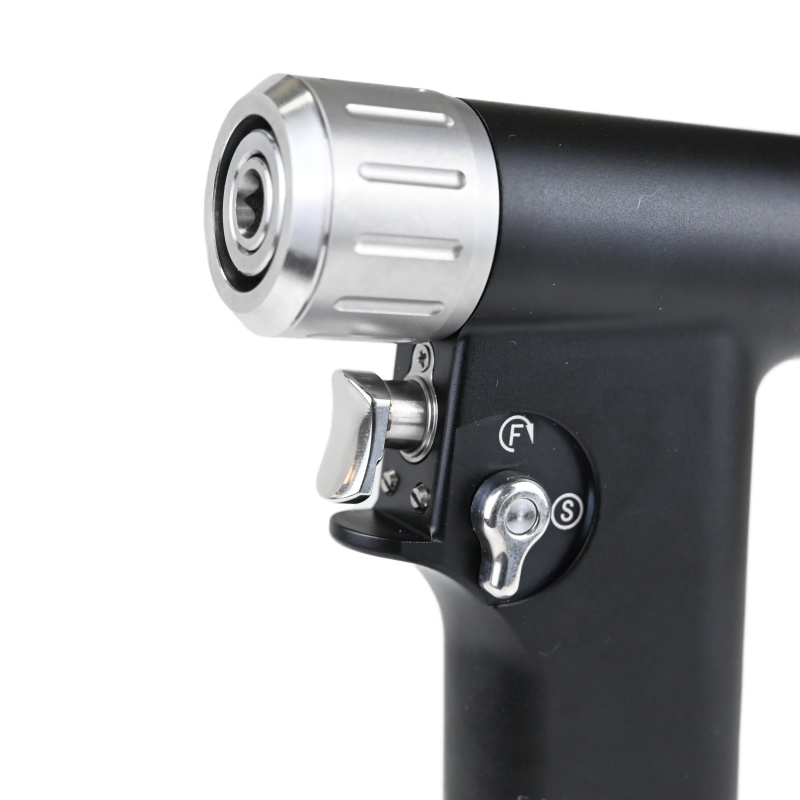

Yes, the outer body of the handpiece is designed with a specialized frosted texture process. This effectively prevents slippage during wet surgical conditions, offering a secure and comfortable grip.
The dual K-wire attachment options support wire sizes ranging from 0.7-1.6mm to 1.6-4.0mm, making it highly versatile for various orthopaedic procedures.
