Medisplint
Medisplint
Optimized for Small Bone Fragment Surgery
| No-load speed | 0-1200r/min | Oscillations | 0-16000 cpm | |
| Chuck gripper diameter | ≤4mm | Sterilization temperature | 135°C | |
| Radial runout | ≤0.10mm | Battery capacity | 1400mAh | |
| Peak torque | 2.9N-m | Battery Type | Ni-MH Green | |
| No-load noise | ≤45dB(A) | Battery Operation Voltage | 7.2V | |
| Noise Functioning | ≤75dB | Hollow diameter | 2.5mm |
Q1: What surgeries is the B100 Multifunction Drill and Saw Set designed for?
A: The B100 set is specifically designed for small bone surgeries, such as foot, hand, and veterinary orthopedic procedures.
Q2: What is the warranty period for the B100 system?
A: We offer a comprehensive 2-year warranty on the B100 multifunction set to ensure reliable quality and operation.
Q3: How many attachments are included in the standard configuration?

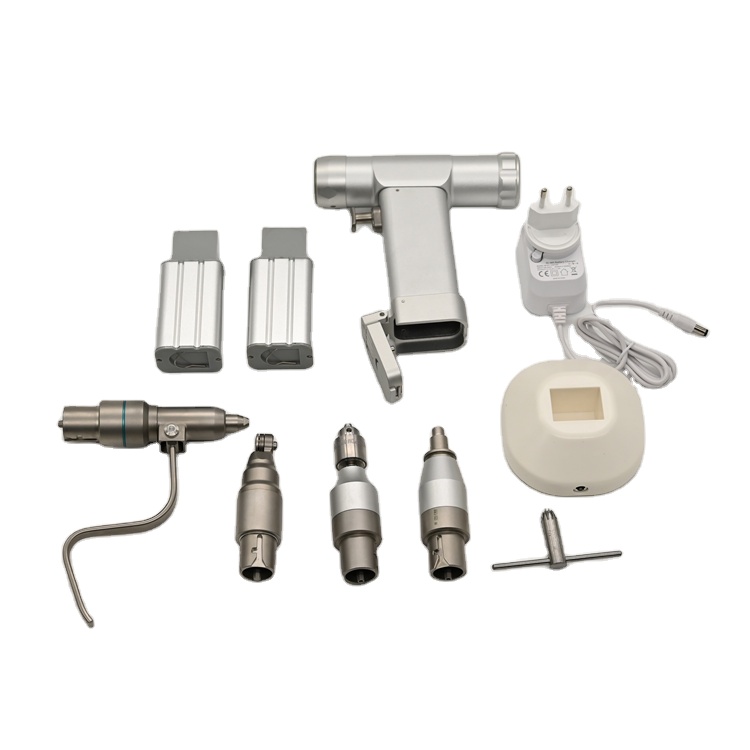

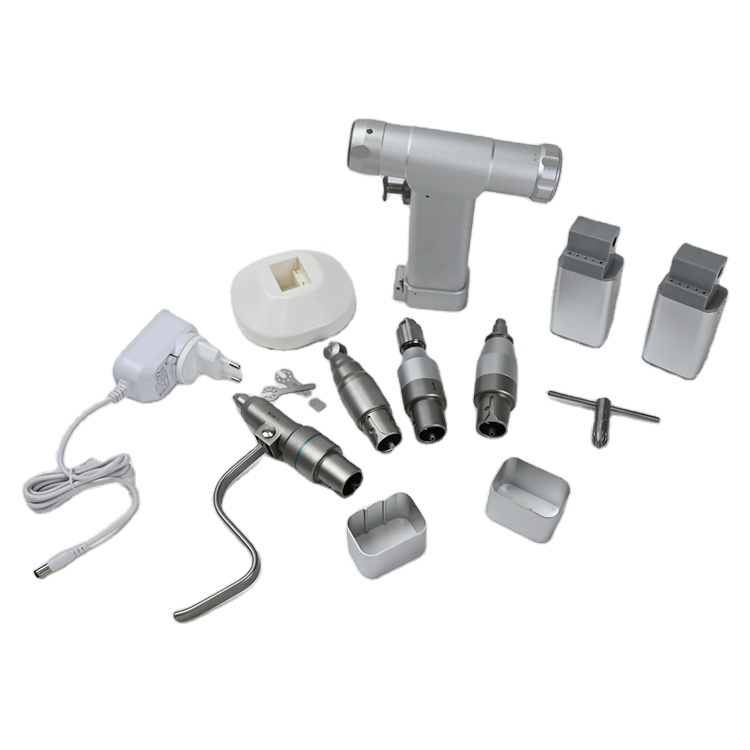

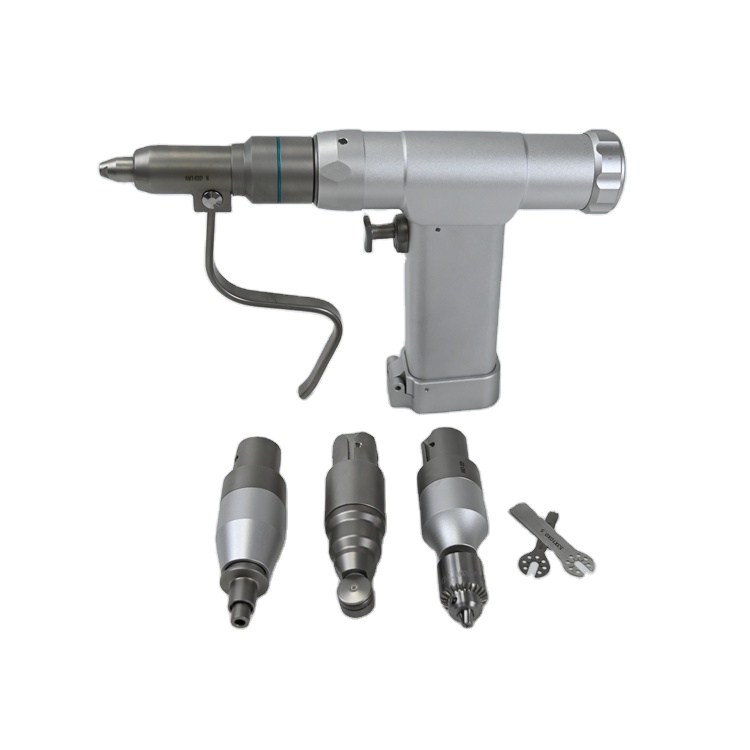

A: The standard set includes 4 primary attachments: a Jacobs key chuck with key, an AO chuck attachment, a mini oscillating saw attachment (with 2 blades), and a K-wire driving attachment.
Q4: What is the recommended sterilization temperature for this medical drill set?
A: The recommended sterilization temperature for the B100 attachments and handpiece is 135°C, ensuring compliance with standard clinical autoclaving protocols.
Q5: What are the battery specifications of the device?
A: The B100 uses a 7.2V Ni-MH Green battery with a capacity of 1400mAh. The standard set package includes 2 batteries and a compatible charger.
Q6: Are OEM customization options available for bulk orders?
A: Yes, OEM customization options are fully supported to match specific specifications, branding, and clinical requirements.
